Powertrain Verification Test VER-4
Powertrain Verification Test VER-4

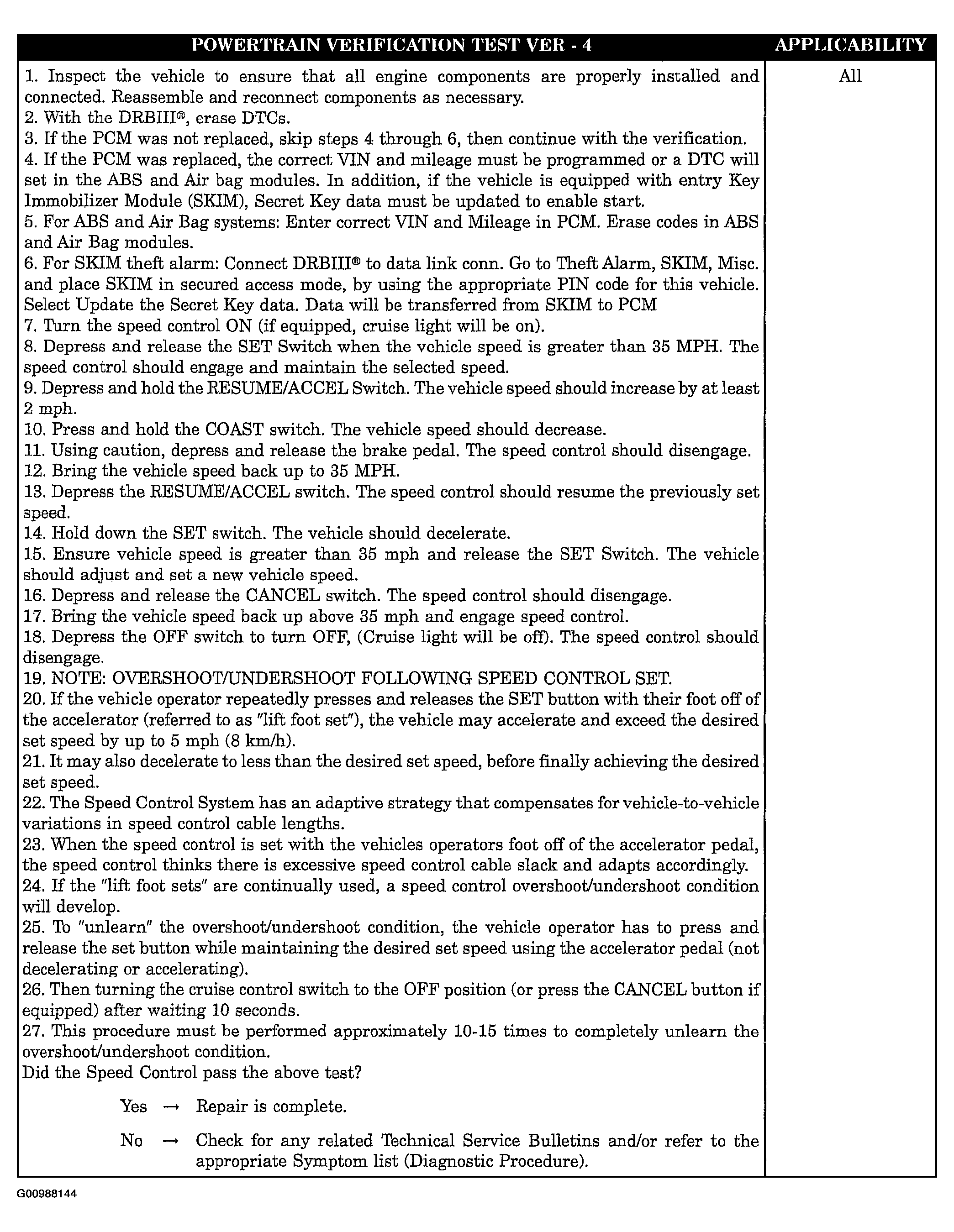

Fig 1: Powertrain Verification Test Ver-4
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
