Powertrain Verification Test VER-5
Powertrain Verification Test VER-5

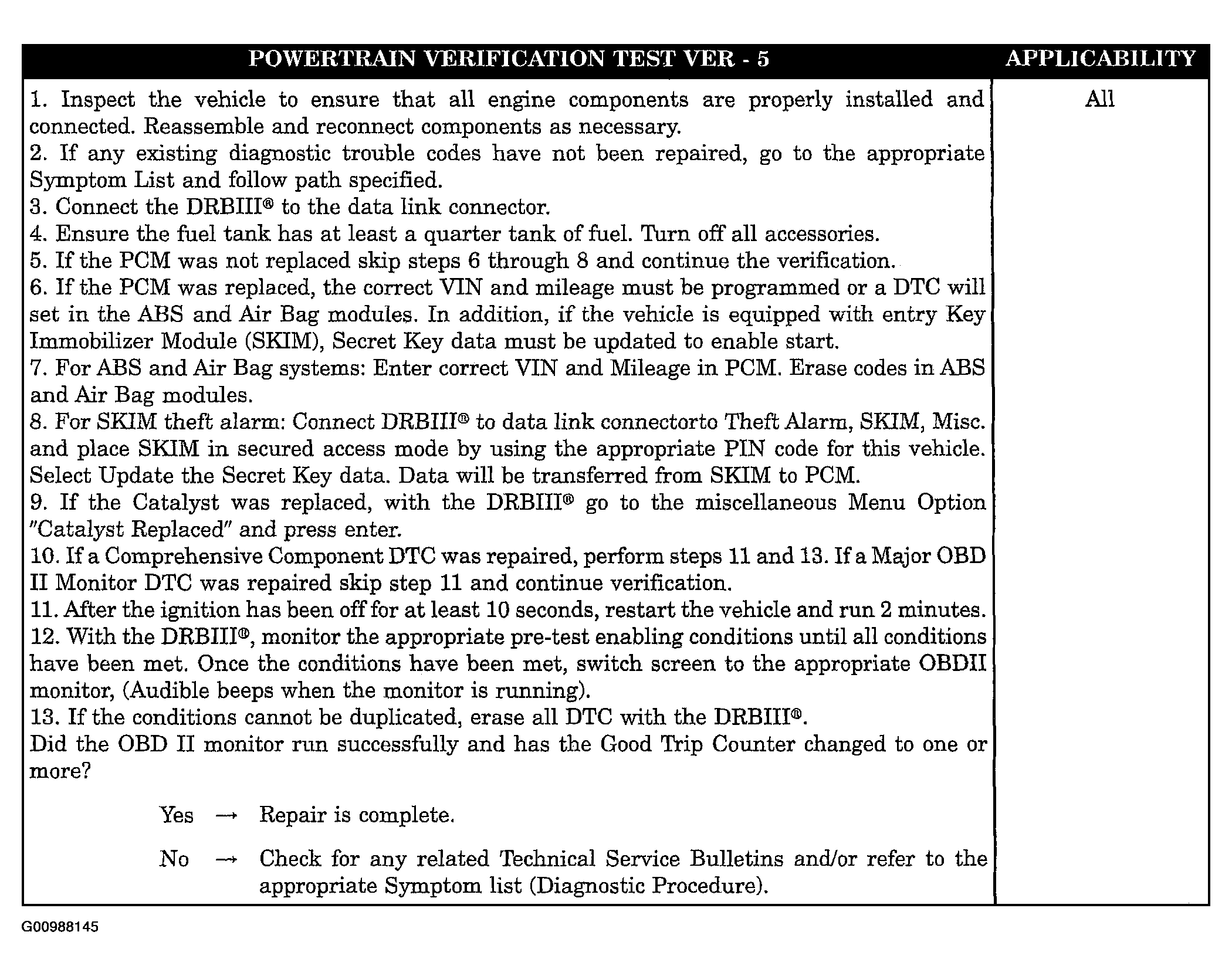

Fig 1: Powertrain Verification Test Ver-5
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
