Power Distribution Center Support Bracket: Removal
- Disconnect and isolate the battery negative cable.
- Remove the Power Distribution Center (PDC) from the PDC bracket (Refer to REMOVAL
).

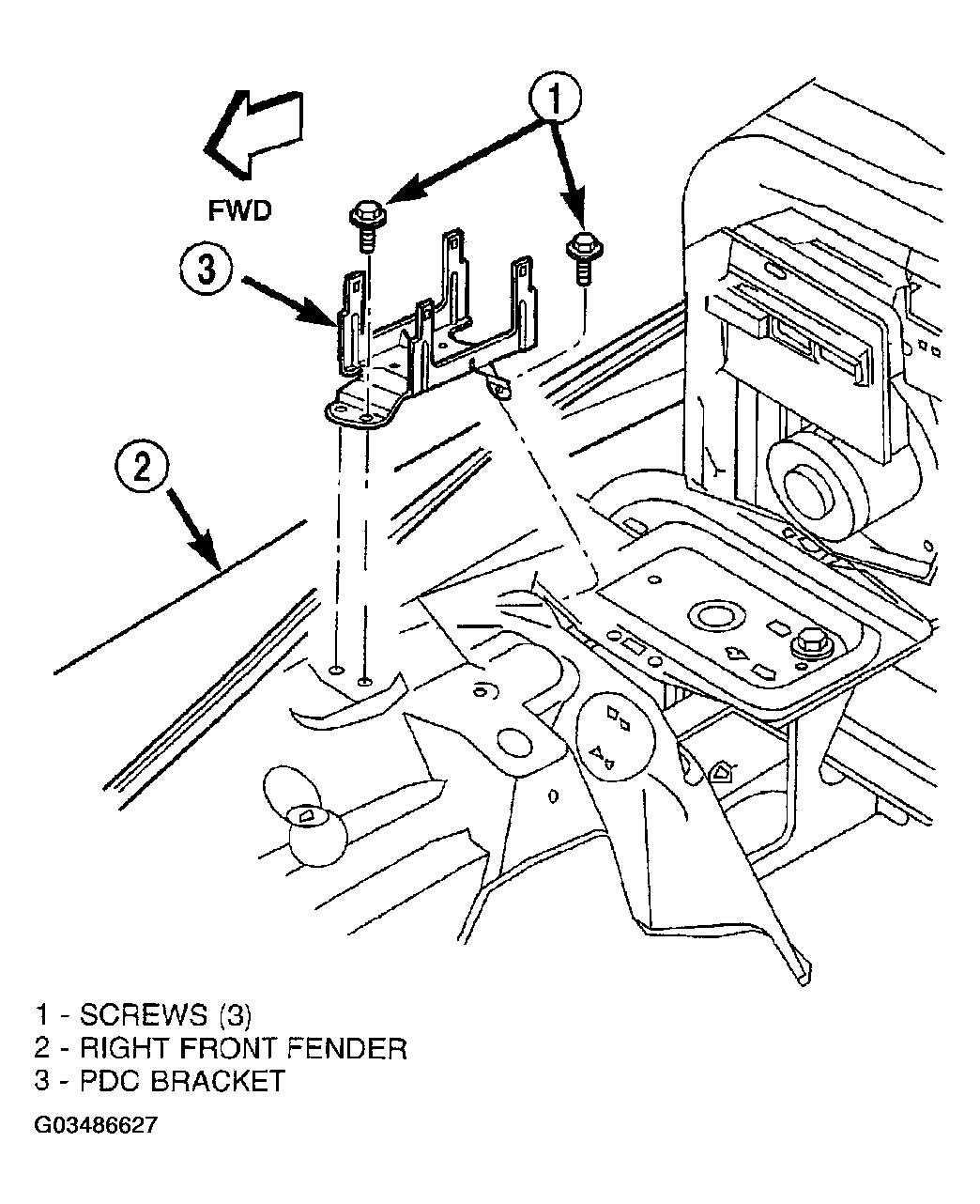

- Remove the three screws that secure the PDC bracket to the right front inner fender (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the PDC bracket from the right front inner fender.
