A/C Compressor Clutch Relay (In PDC)

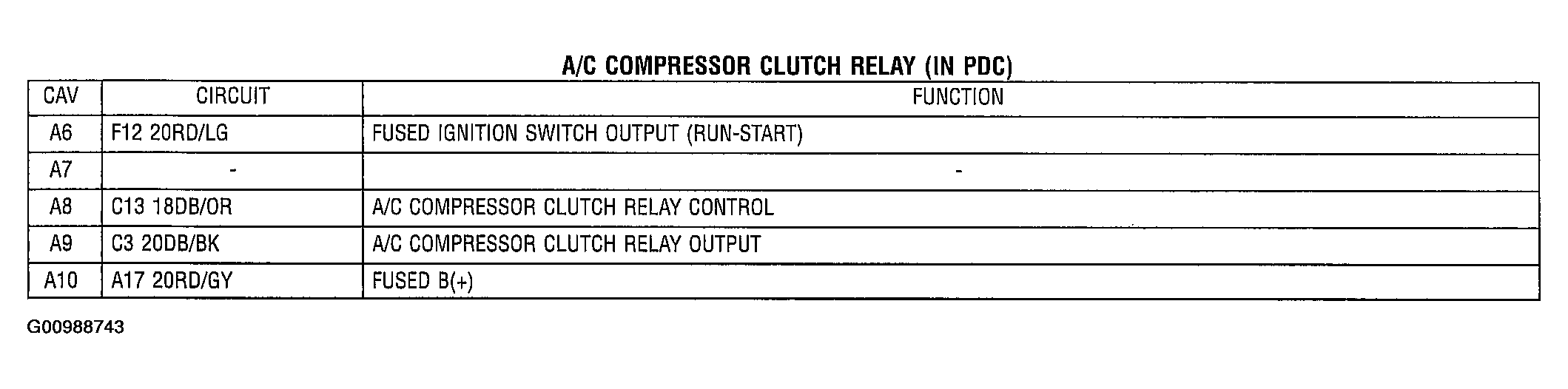

Fig 1: Identifying A/C Compressor Clutch Relay (In PDC)
G00988743Courtesy of DAIMLERCHRYSLER CORP.
