Electronic Overhead Module Connector End View

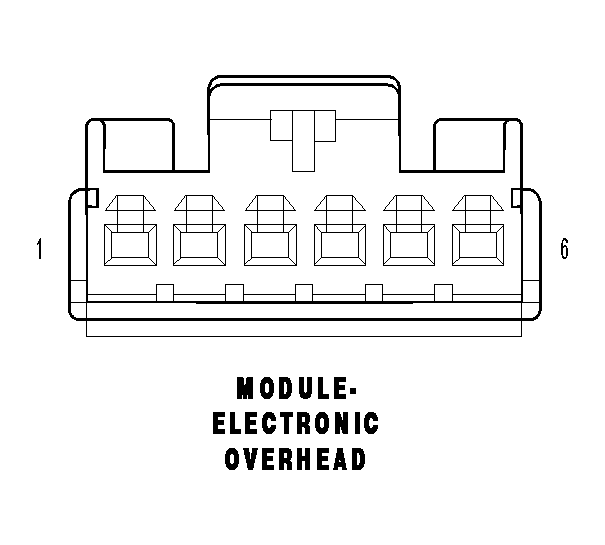

MODULE-ELECTRONIC OVERHEAD - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
D55 20WT/OR |
CAN B BUS (+) |
| 2 |
D54 20WT |
CAN B BUS (-) |
| 3 |
A114 18GY/RD |
FUSED B(+) |
| 4 |
Z915 18BK |
GROUND |
| 5 |
F921 20PK/YL |
FUSED RUN RELAY OUTPUT |
| 6 |
- |
- |
