PDC Relay Cassette

REMOVAL

The Power Distribution Center (PDC) cover, the PDC housing lower cover, the PDC relay wedges, the PDC mini fuse wedge, the PDC relay cassettes and the PDC B(+) terminal stud module are available for service replacement. The PDC cover can be simply unlatched and removed from the PDC housing without the PDC being removed or disassembled. Service of the remaining PDC components requires that the PDC be removed from its mounting and disassembled. Refer to SYSTEM WIRING DIAGRAMS for the location of the wiring repair procedures.

1. Remove the relay wedge from the PDC relay cassette to be removed.
   NOTE: It may be necessary to remove relay cassettes that are not being serviced from the PDC housing in order to obtain sufficient clearance to access the faulty relay cassette. The same service procedure is repeated as necessary to remove each of the interfering relay wedges and relay cassettes from the PDC housing.
2. From the top of the PDC housing, use a small screwdriver or a terminal pick tool (Special Tool Kit 6680) to release the two latches that secure the relay cassette in the PDC. See Fig 1.

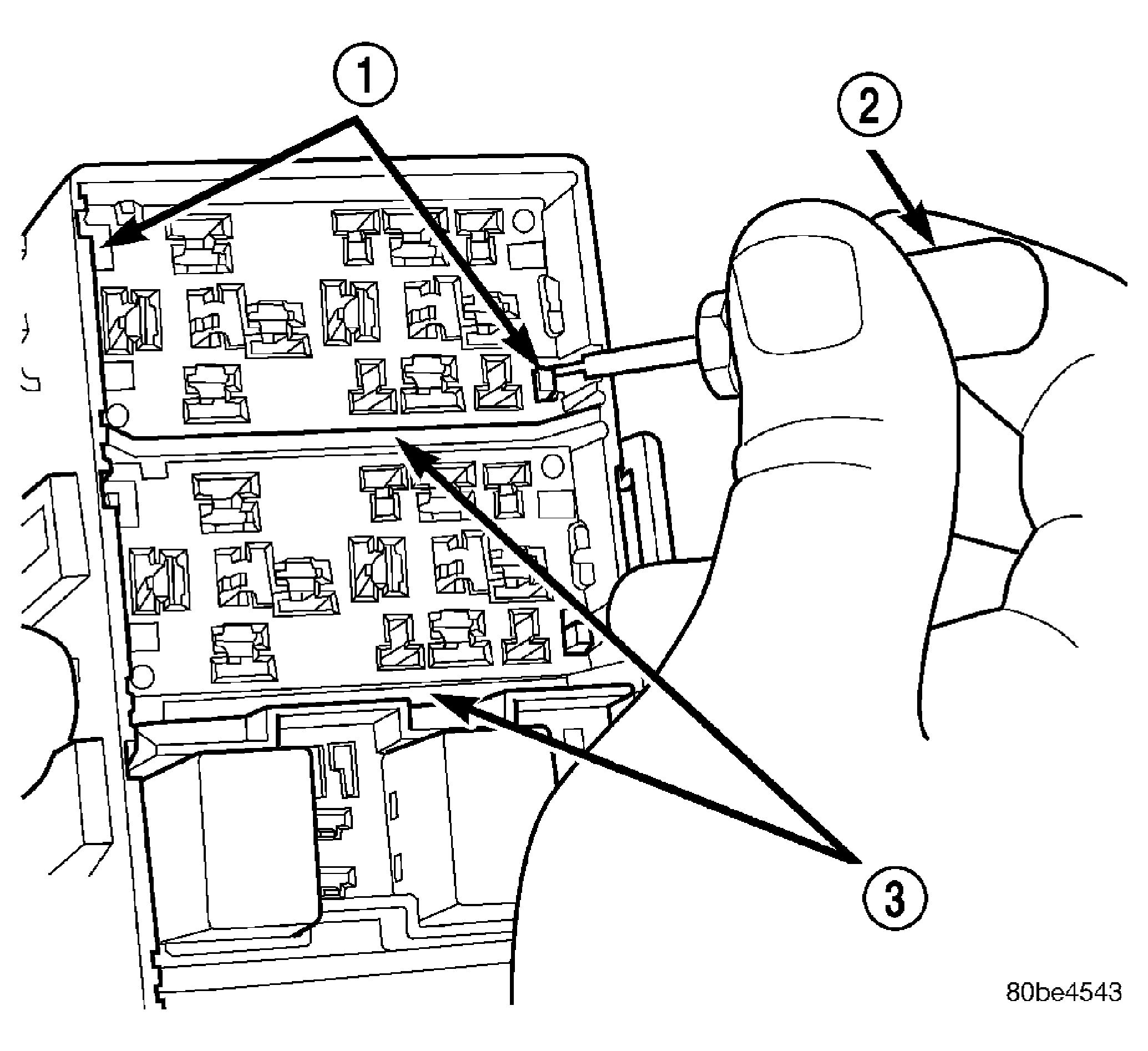

   Fig 1: PDC Relay Cassette Latches - Typical

   Courtesy of DAIMLERCHRYSLER CORP.

   1 - LATCHES

   2 - FROM SPECIAL TOOL KIT 6680

   3 - PDC RELAY CASSETTES

3. Gently and evenly press the relay cassette down through the PDC housing.
4. From the bottom of the PDC housing, remove the relay cassette from the PDC. See Fig 2.

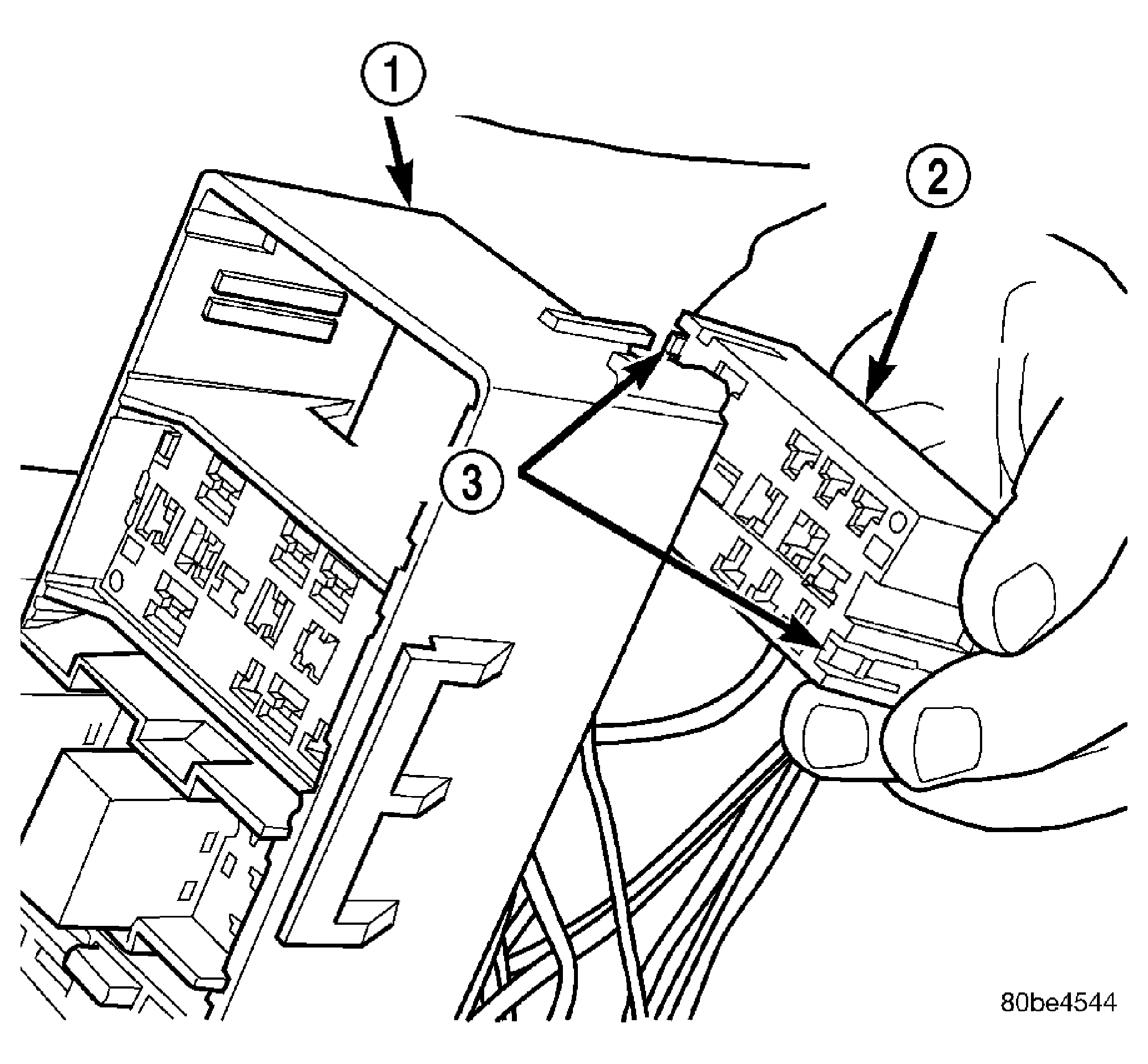

Fig 2: PDC Relay - Typical

Courtesy of DAIMLERCHRYSLER CORP.
