Jeep
›
2005
›
Liberty Limited, 2.8 5, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures - Diesel
›
Connector PINOUTS
›
Anti-Lock Brake Module - 47 Way
Anti-Lock Brake Module - 47 Way

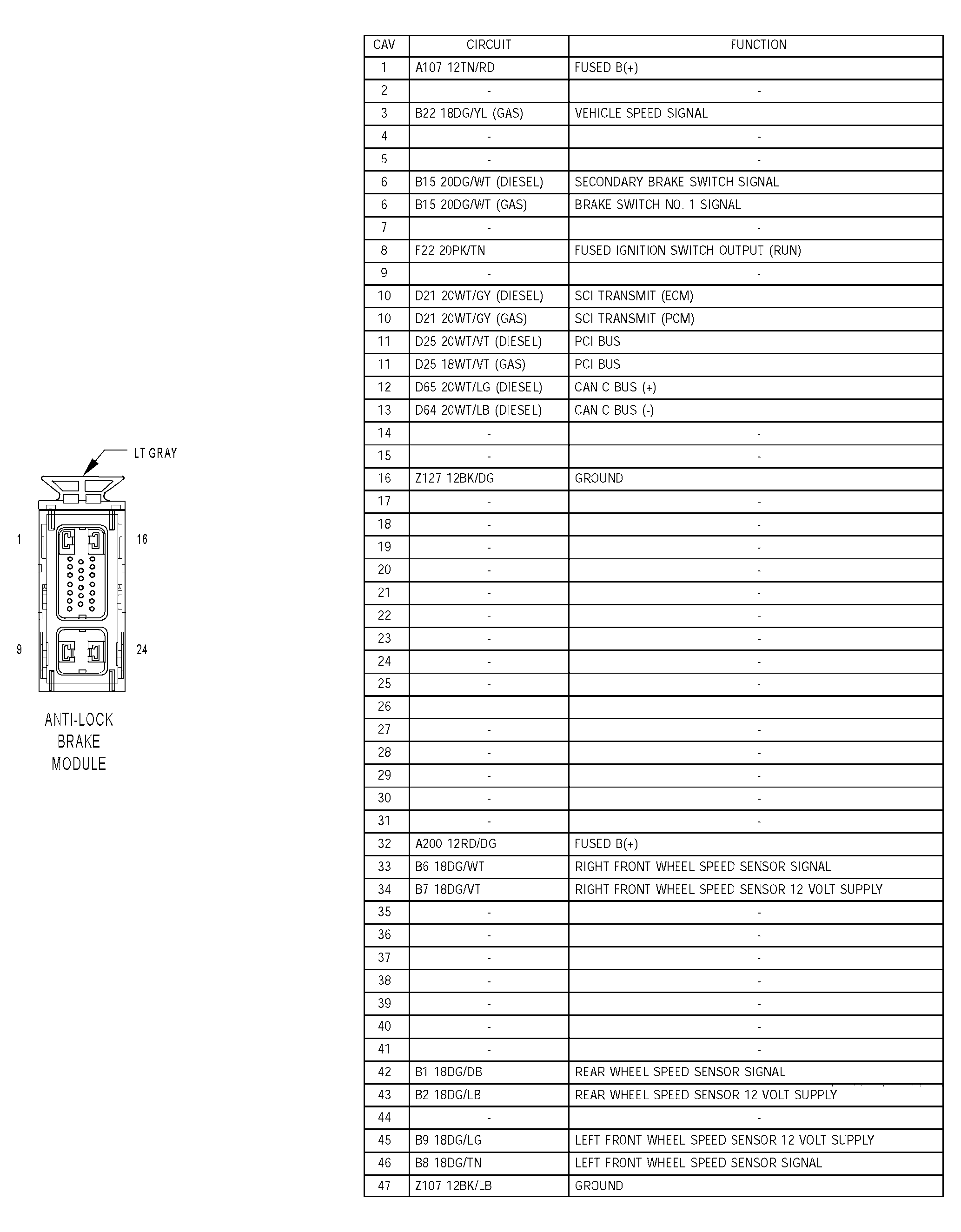

Fig 1: Anti-Lock Brake Module Connector Pinouts - 47 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
