Jeep
›
2005
›
Liberty Limited, 2.8 5, Part Time
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures - Diesel
›
Connector PINOUTS
›
Engine Control Module C1 (Diesel) - 96 Way
Engine Control Module C1 (Diesel) - 96 Way

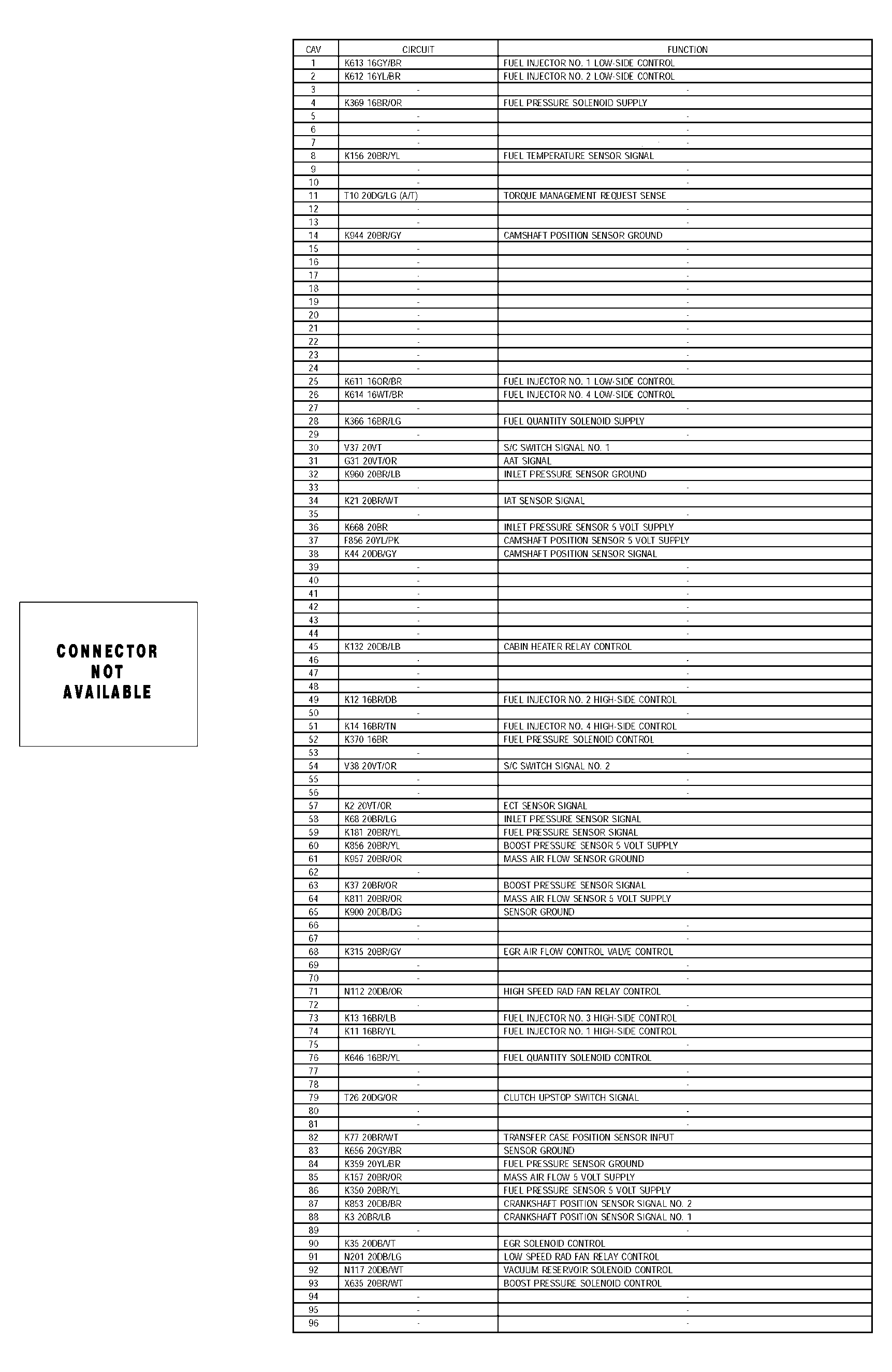

Fig 1: Engine Control Module C1 Connector Pinouts (Diesel) - 96 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
