Powertrain Diagnostic Procedures - Diesel
›
Connector PINOUTS
›
Engine Control Module C2 (Diesel) - 58 Way
Engine Control Module C2 (Diesel) - 58 Way

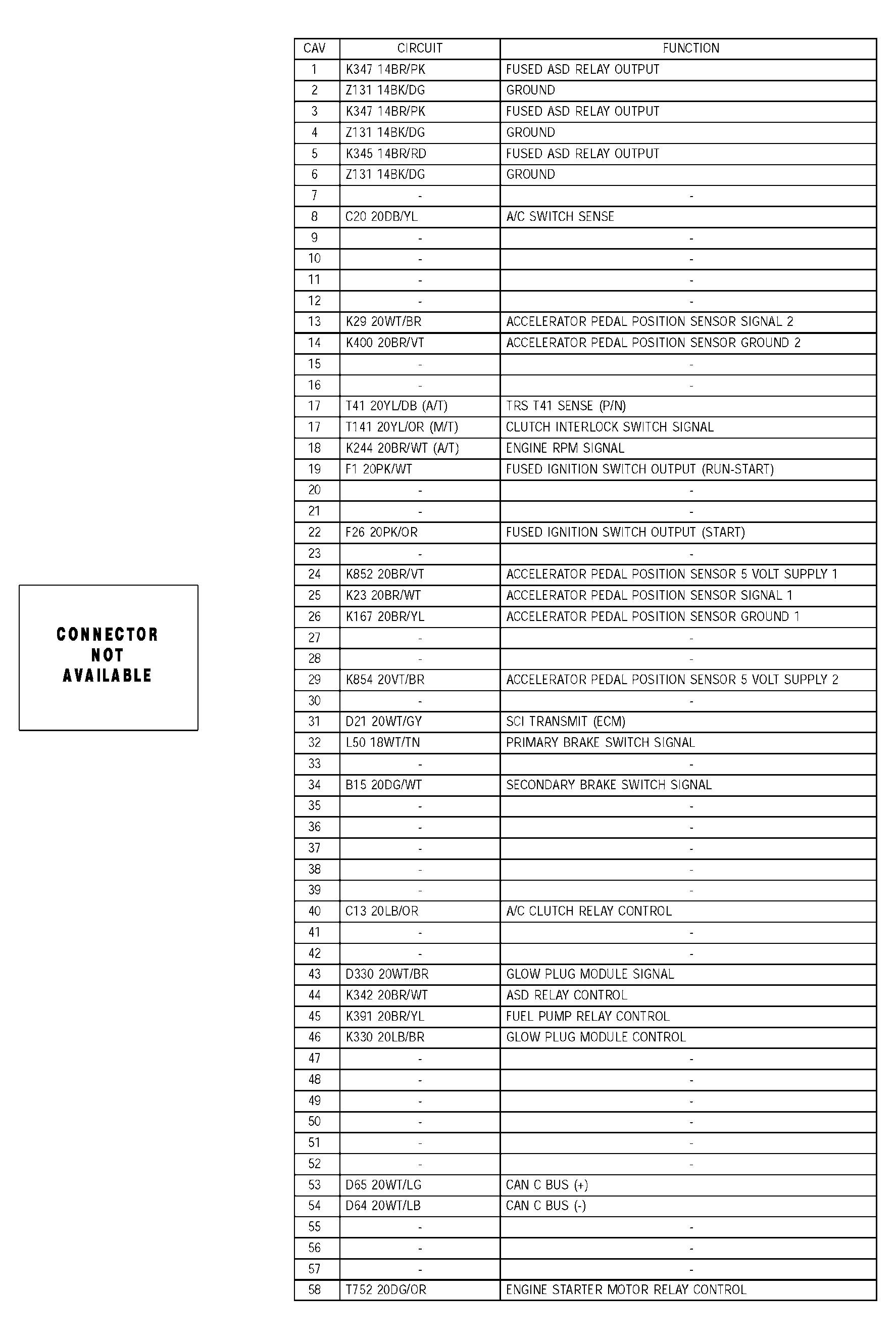

Fig 1: Engine Control Module C2 Connector Pinouts (Diesel) - 58 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
