Glow Plug Module (Diesel) - 11 Way

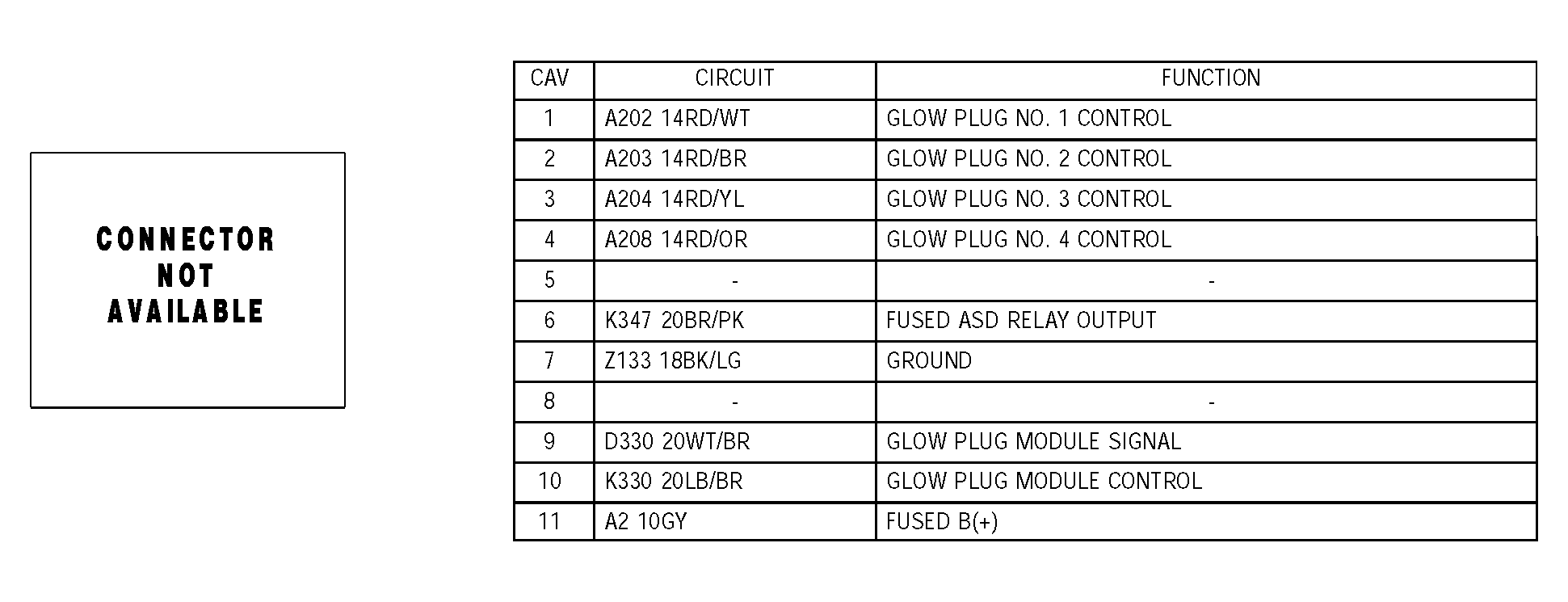

Fig 1: Glow Plug Module Connector Pinouts (Diesel) - 11 Way
G04550081Courtesy of DAIMLERCHRYSLER CORP.
