Power Distribution Center

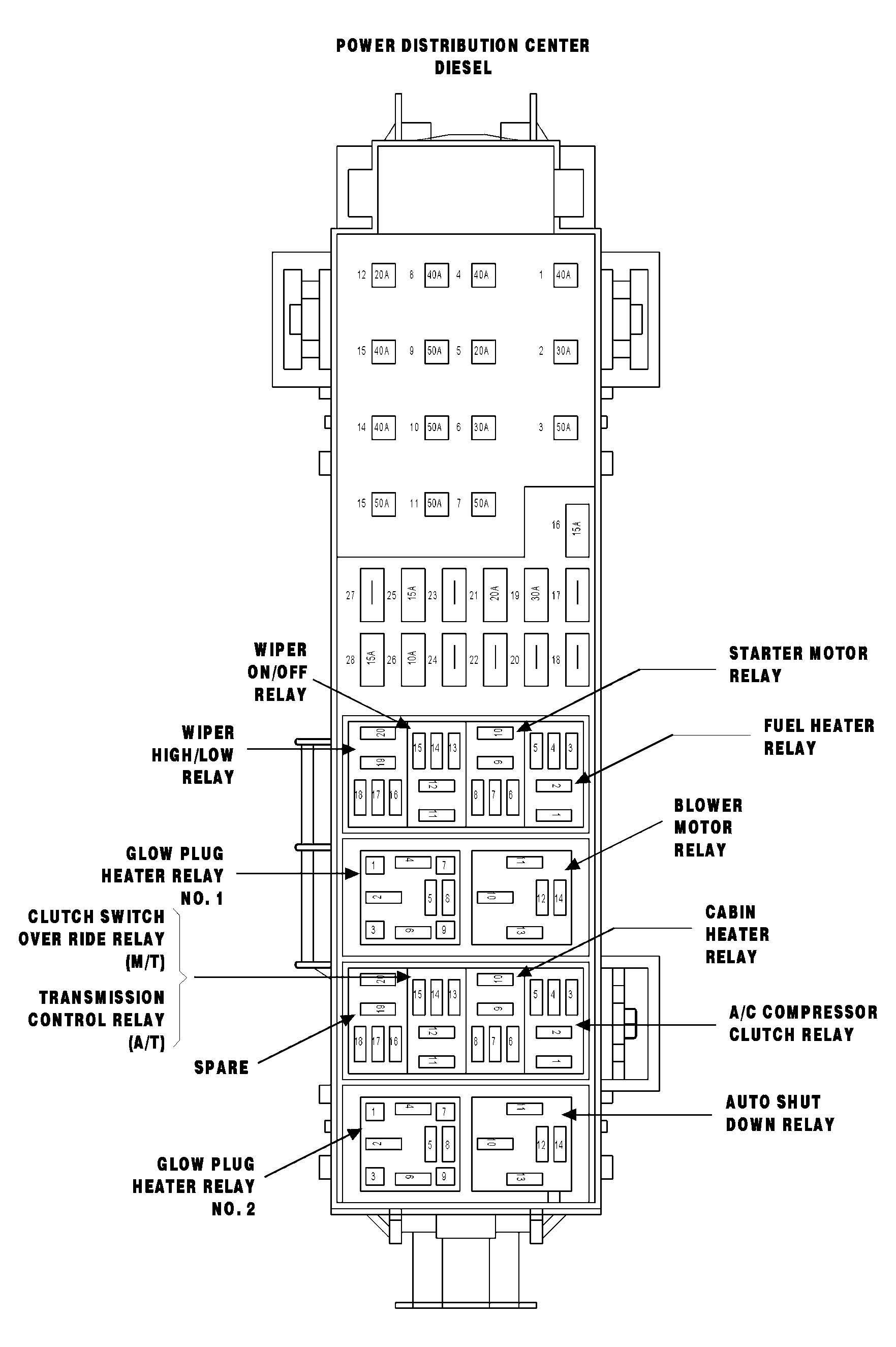

Fig 1: Power Distribution Center Connector Pinouts (Diesel)
G04550085Courtesy of DAIMLERCHRYSLER CORP.

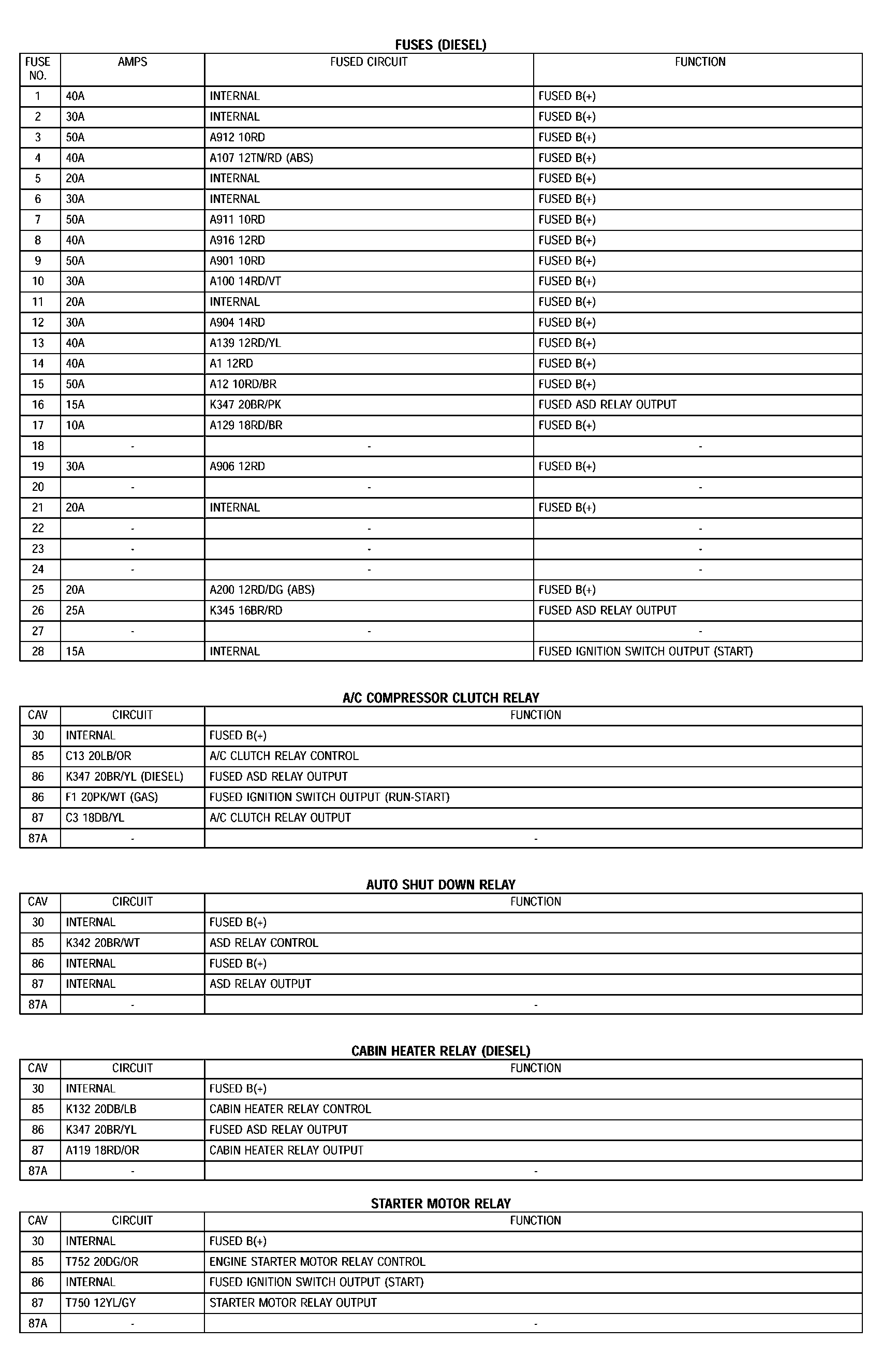

Fig 2: Power Distribution Center Fuses & Relays (Diesel)
G04550086Courtesy of DAIMLERCHRYSLER CORP.
