Liberty Renegade, 4WD, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures - Gas
›
Connector PINOUTS
›
Fuel Pump Module - 4 Way
Fuel Pump Module - 4 Way

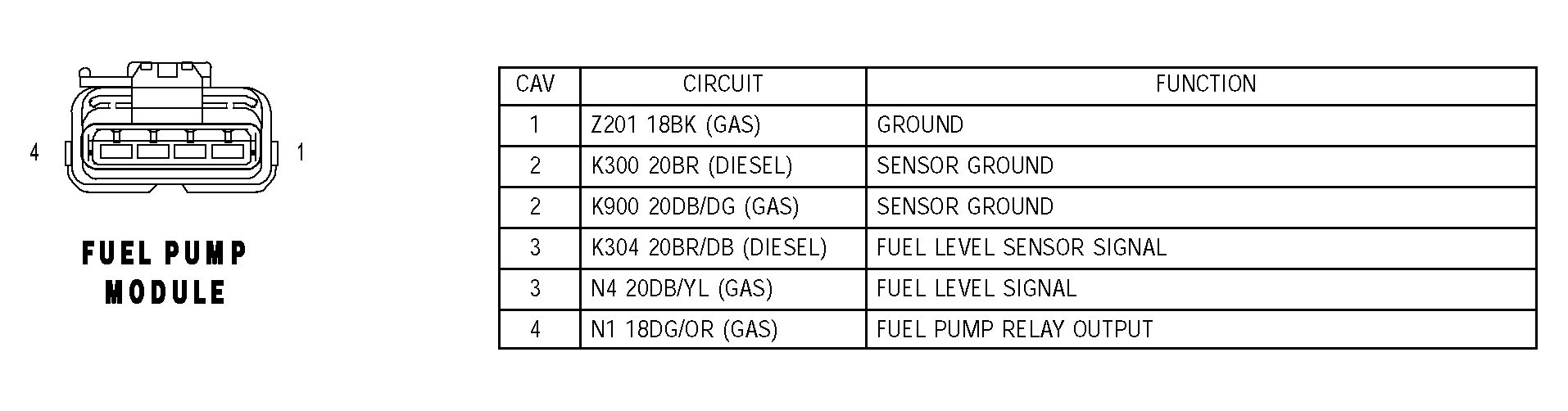

Fig 1: Identifying Fuel Pump Module - 4 Way Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
