Junction Block

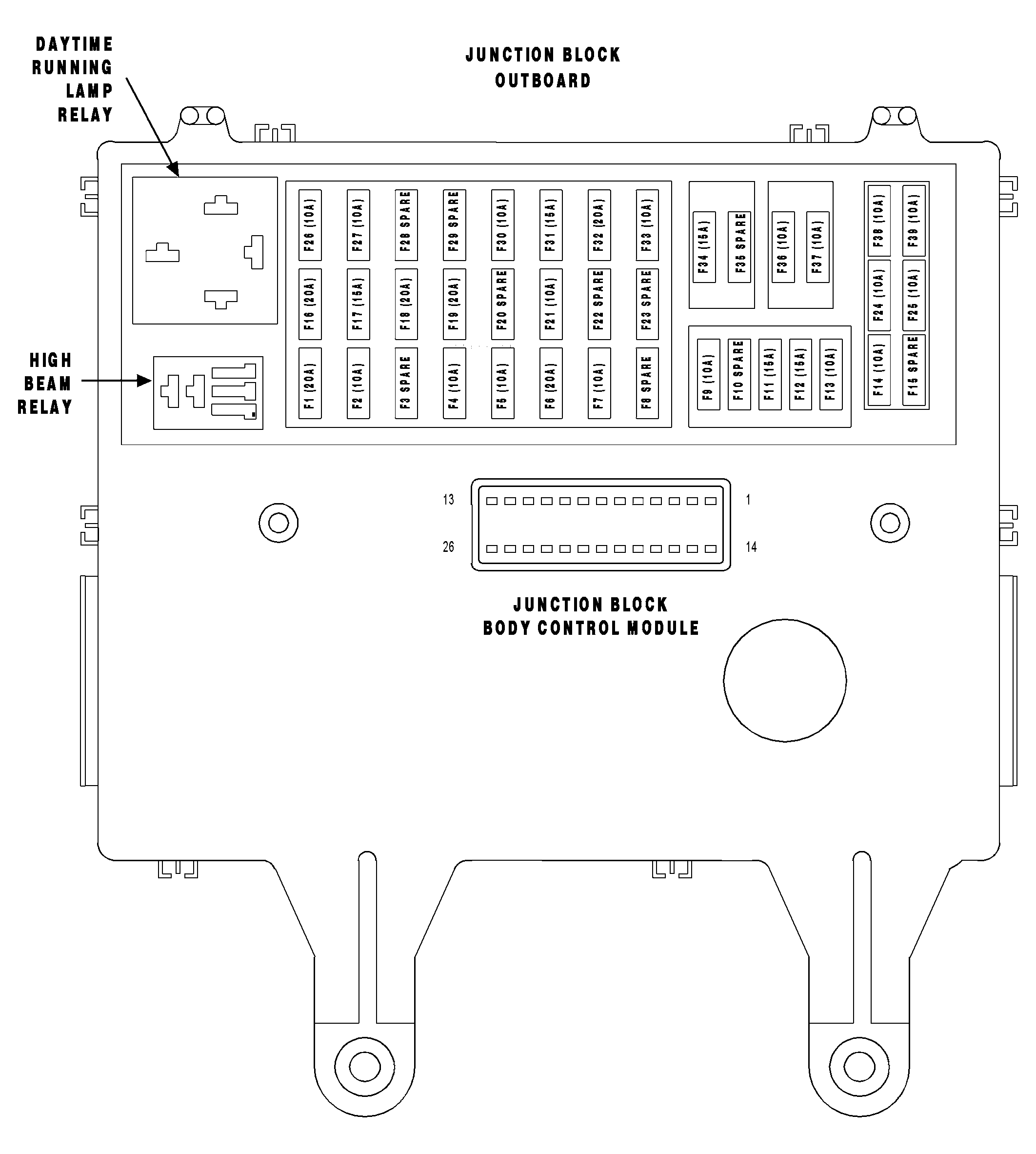

Fig 1: View Of Junction Block Outboard
G04549980Courtesy of DAIMLERCHRYSLER CORP.

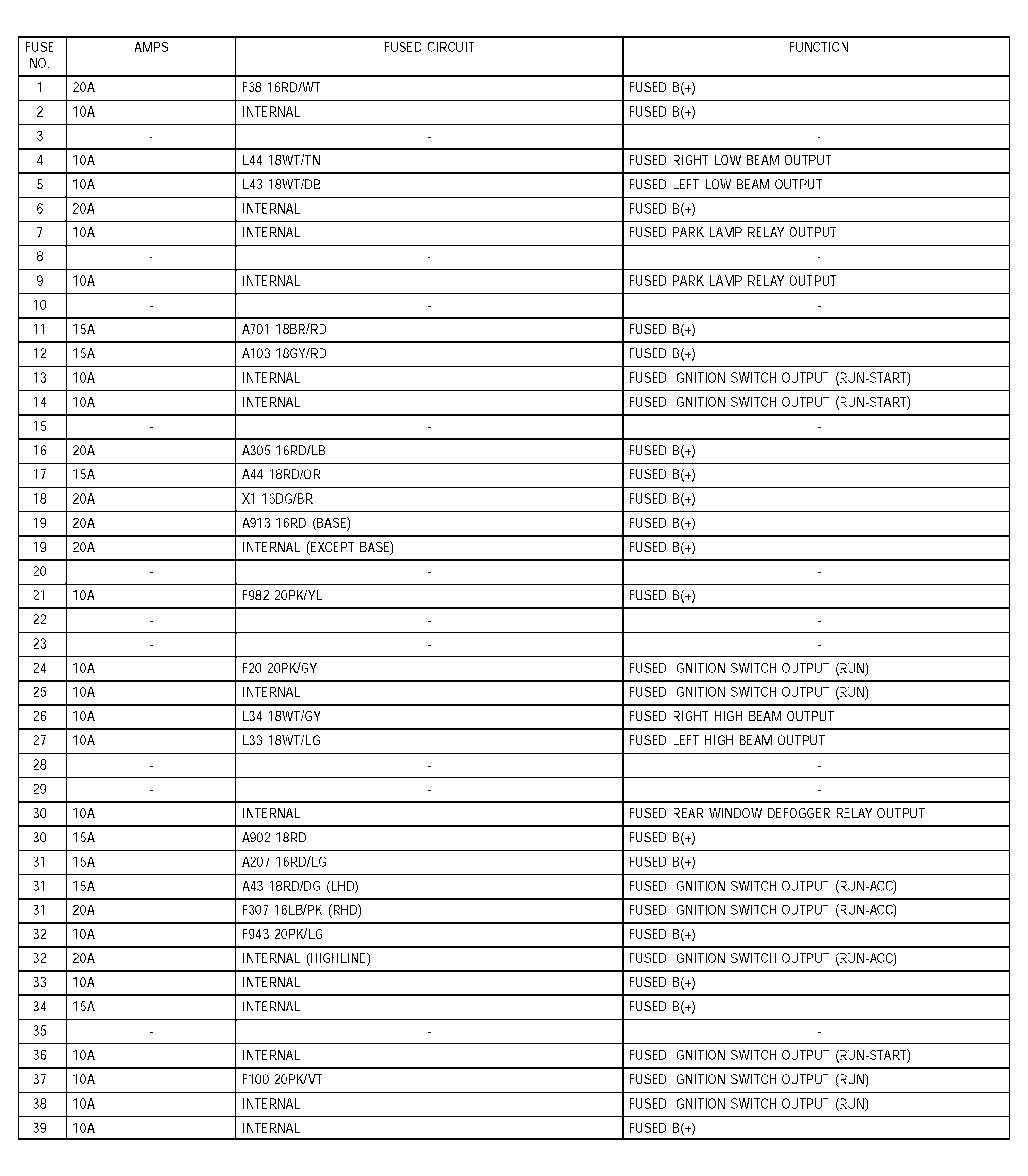

Fig 2: Fuses (JB) Reference Table
G04549981Courtesy of DAIMLERCHRYSLER CORP.
