Powertrain Diagnostic Procedures - Gas
›
Connector PINOUTS
›
Power Distribution Center
Power Distribution Center

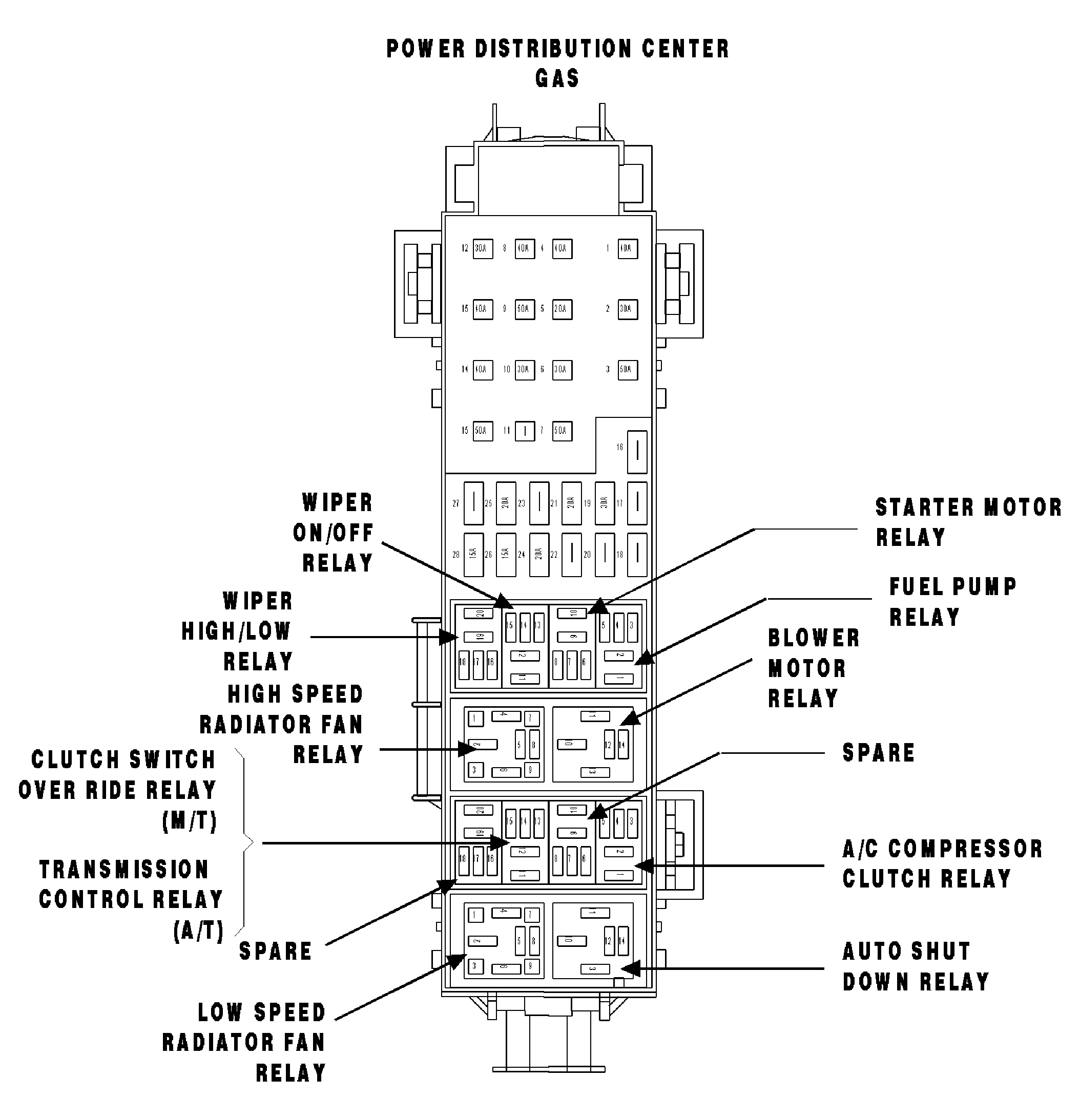

Fig 1: Identifying Relays
Courtesy of DAIMLERCHRYSLER CORP.

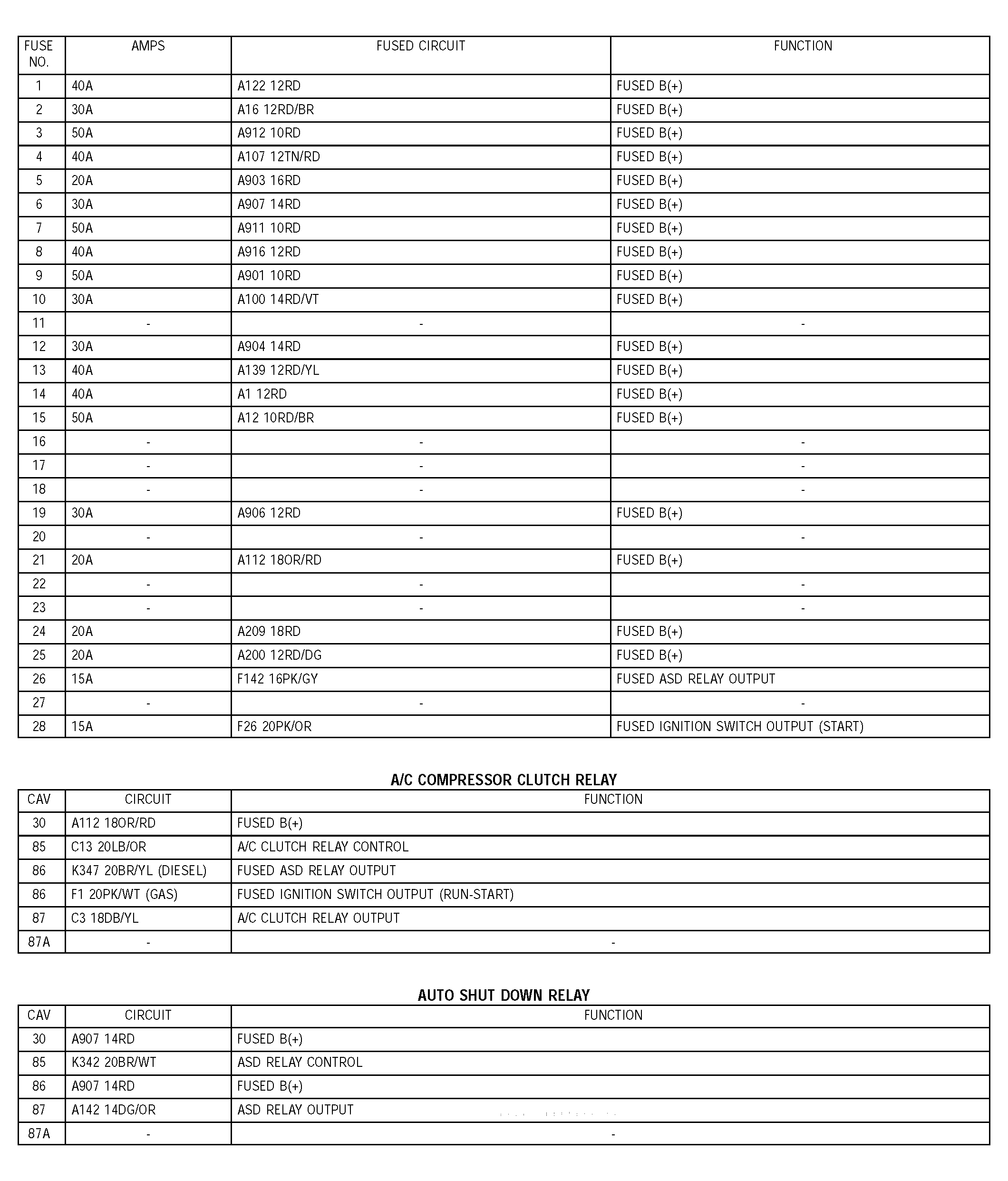

Fig 2: Fuses & Relays Reference Table
Courtesy of DAIMLERCHRYSLER CORP.

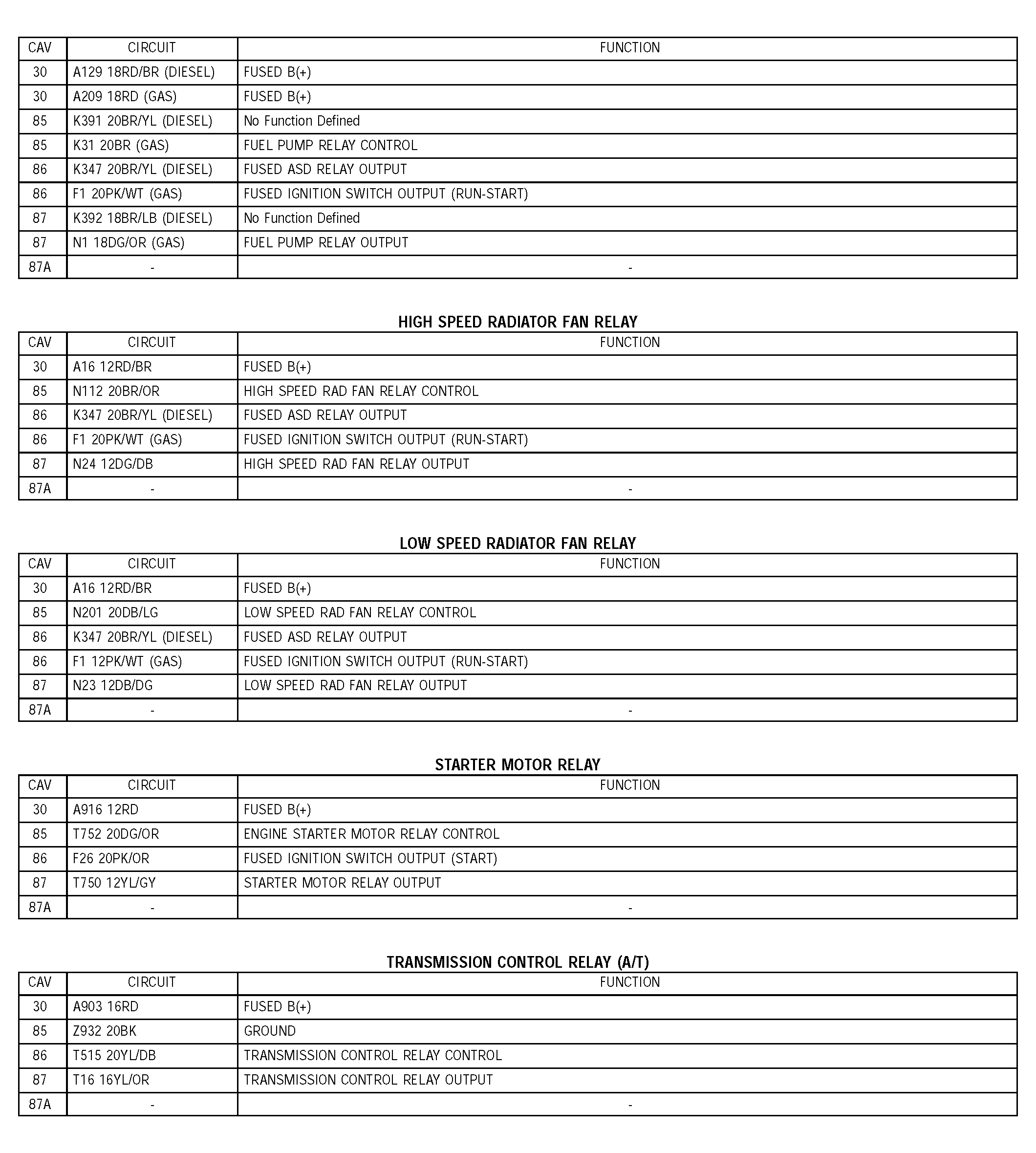

Fig 3: Relays Reference Table
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
