Jeep
›
2005
›
Liberty Renegade, 4WD, Part Time, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures - Gas
›
Connector PINOUTS
›
Powertrain Control Module C2 - Black/Orange 38 Way
Powertrain Control Module C2 - Black/Orange 38 Way

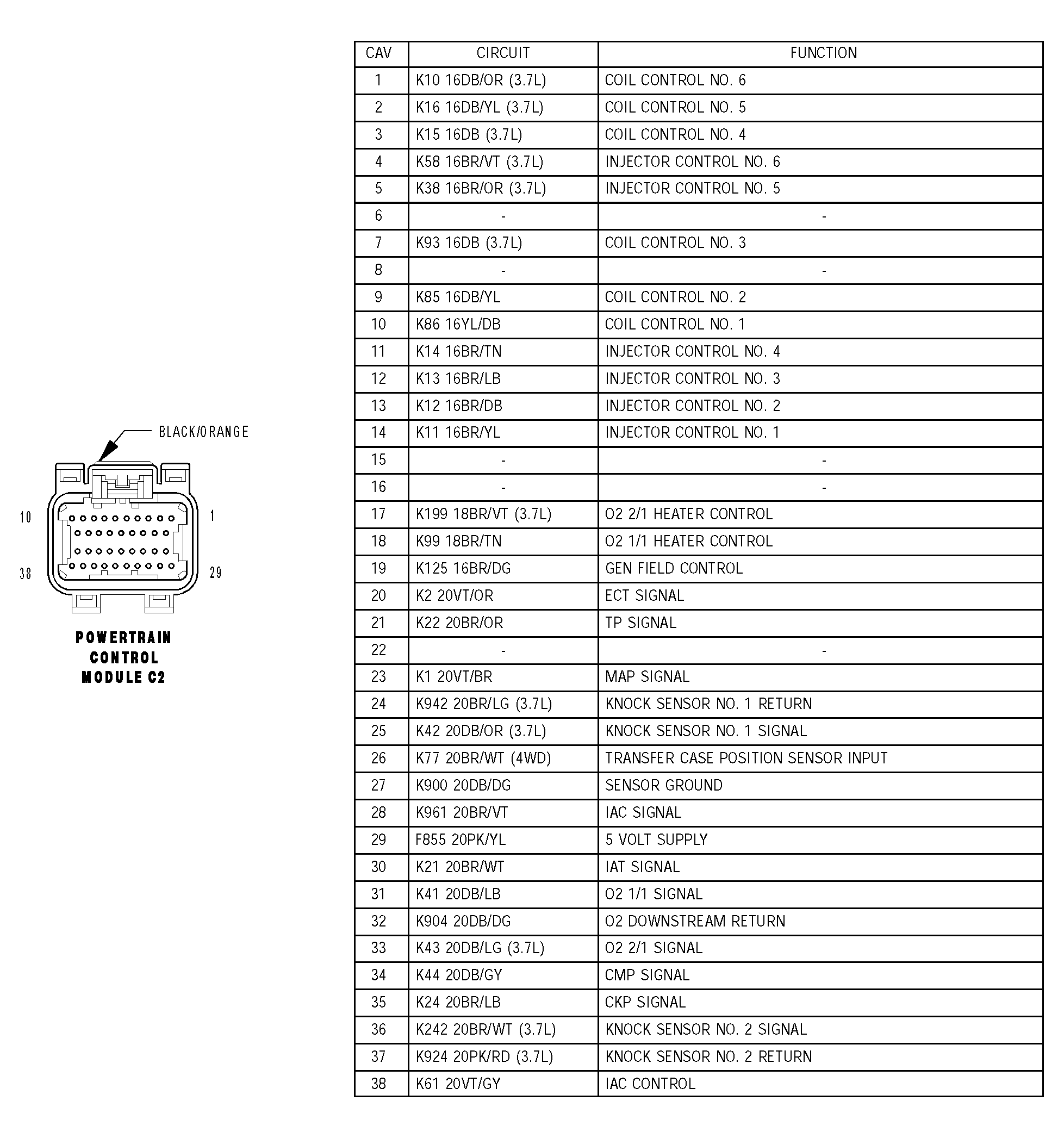

Fig 1: Identifying Powertrain Control Module C2 - Black/Orange 38 Way Pinouts
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
