Ignition Coil: Removal: 2.4L

Disconnect electrical connector at rear of coil.
Remove all secondary cables from coil.
Remove 4 coil mounting bolts. See Fig 1.
Remove coil from vehicle.

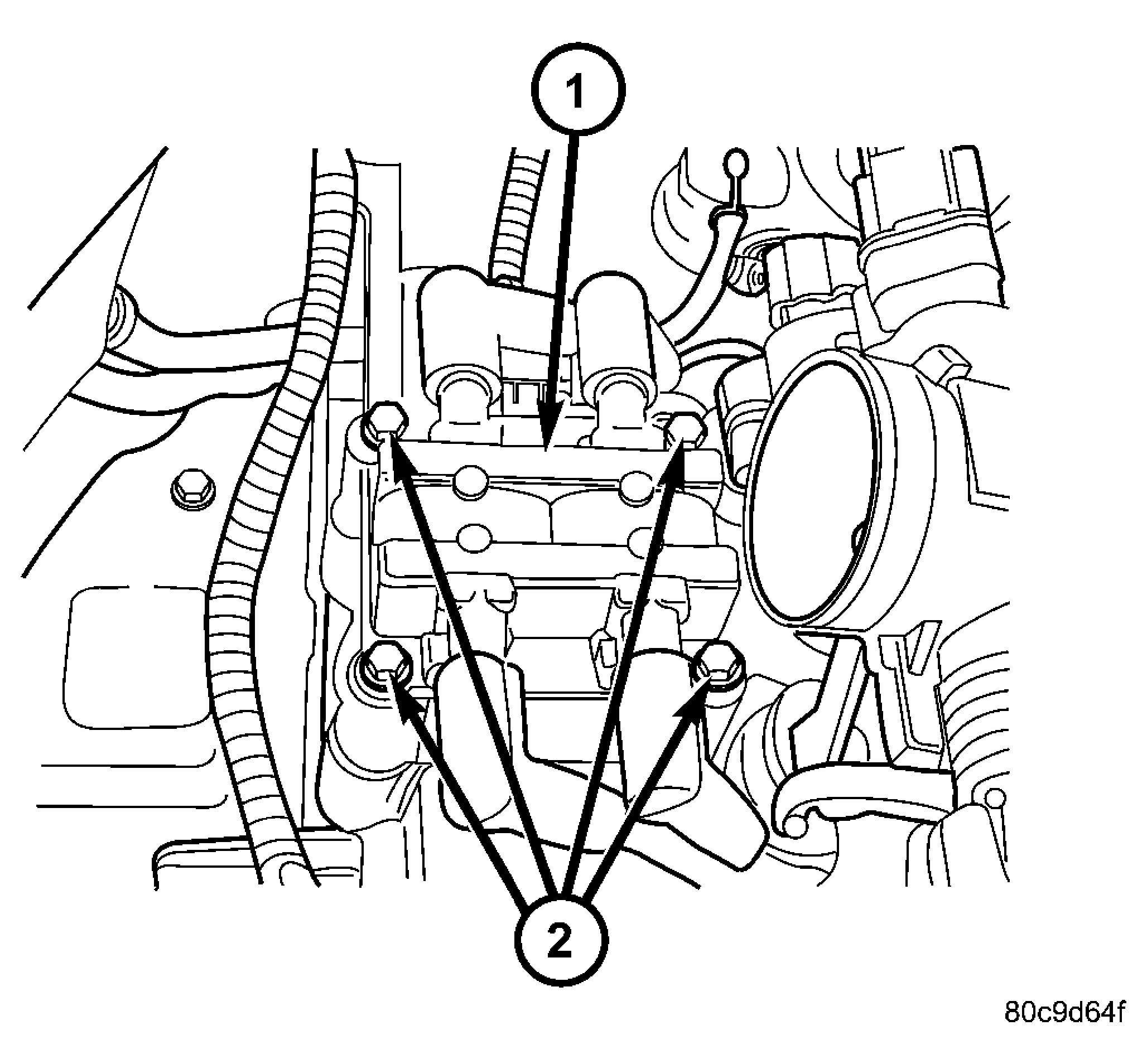

Fig 1: Ignition Coil - 2.4L

GC0026421

Courtesy of DAIMLERCHRYSLER CORP.

1 - IGNITION COIL

2 - MOUNTING BOLTS (4)
