Powertrain Control Module C4 - Black/Green 38 Way

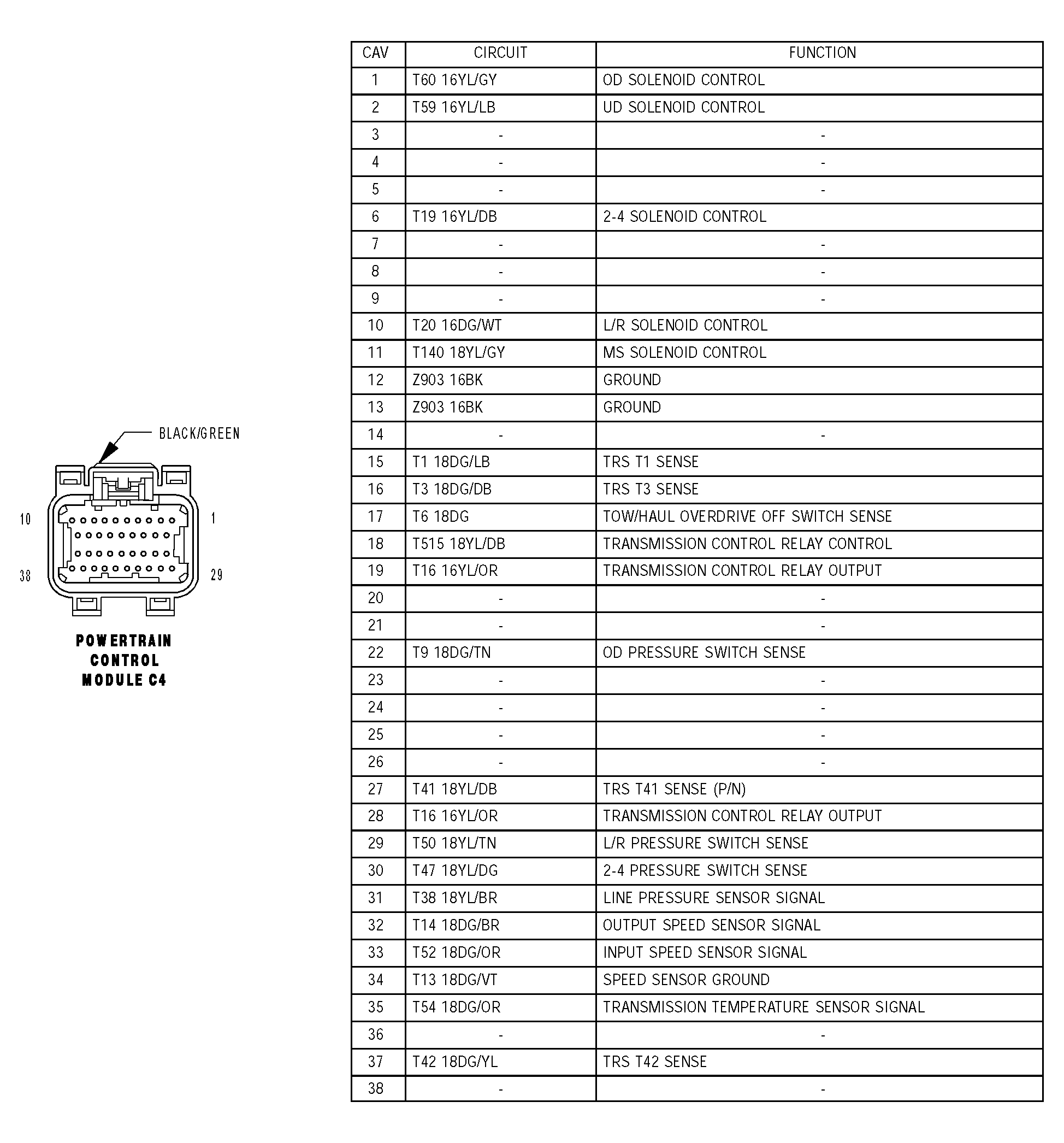

Fig 1: Identifying Powertrain Control Module Connector Terminal C4 - Black/Green 38 Way
G04550628Courtesy of DAIMLERCHRYSLER CORP.
