Stabilizer Bar: Removal

Remove upper link nuts and separate the links from the stabilizer bar with Remover MB-991113. See Fig 1.
Remove front bumper valence.
Remove stabilizer retainer bolts and remove retainers. See Fig 1.
Remove stabilizer bar.
Remove lower link nuts and bolts and remove links. See Fig 1.

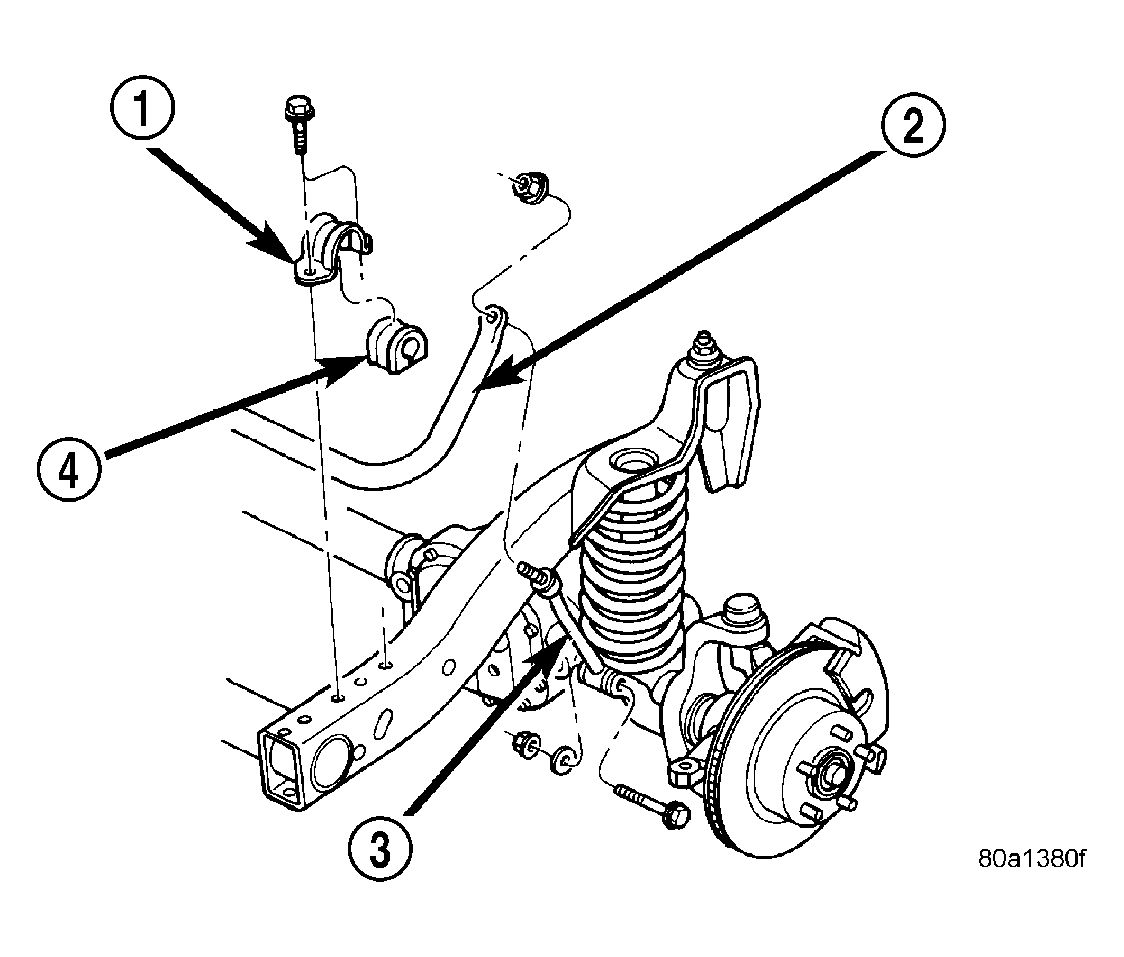

Fig 1: Stabilizer Bar

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINER

2 - STABILIZER BAR

3 - LINK

4 - BUSHING
