Jeep
›
2005
›
Wrangler Sport, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C2 - Black/Orange 38 Way
Powertrain Control Module C2 - Black/Orange 38 Way

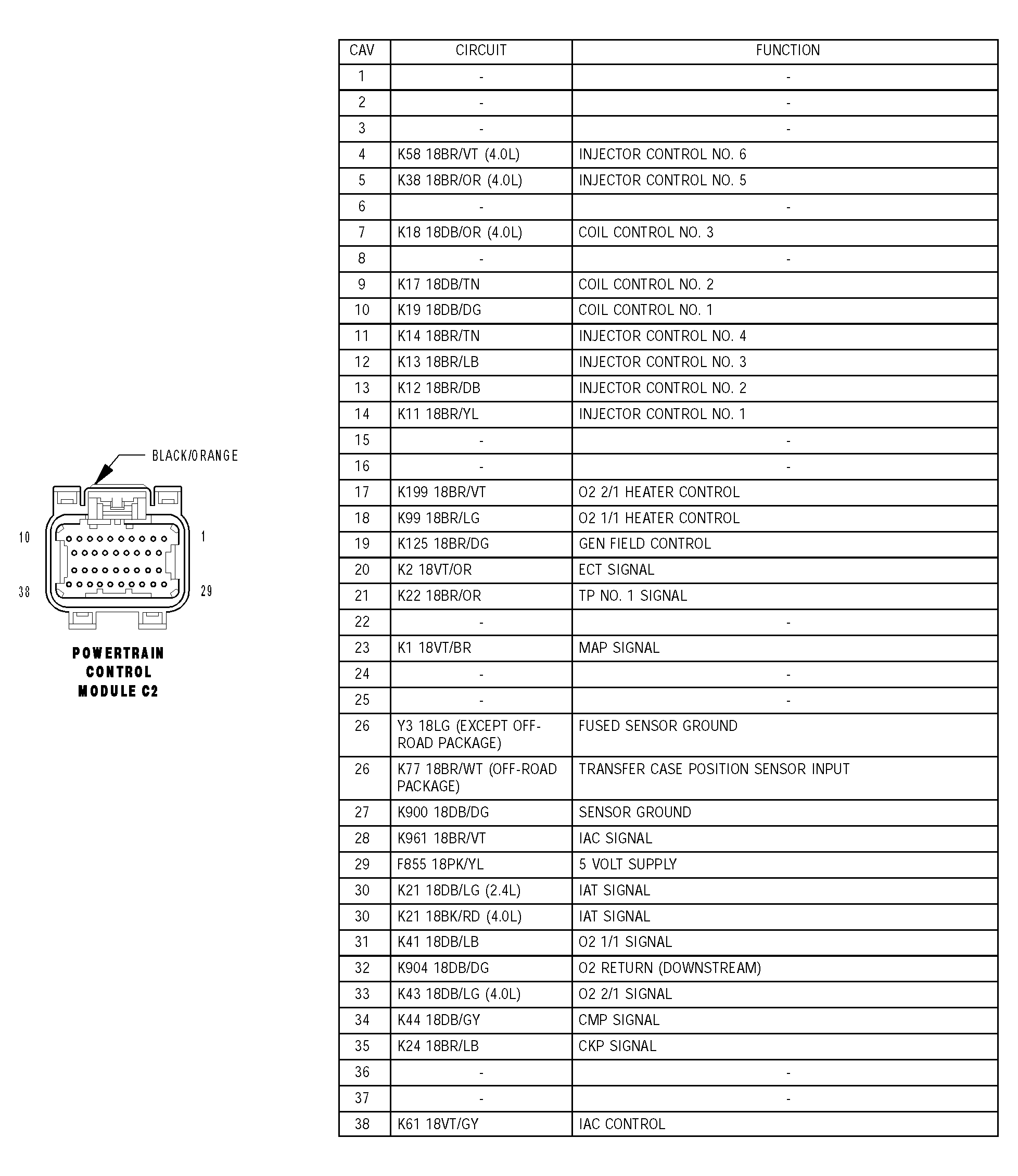

Fig 1: Identifying Powertrain Control Module Connector Terminal C2 - Black/Orange 38 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
