Powertrain Control Module C3 - Black/Natural 38 Way

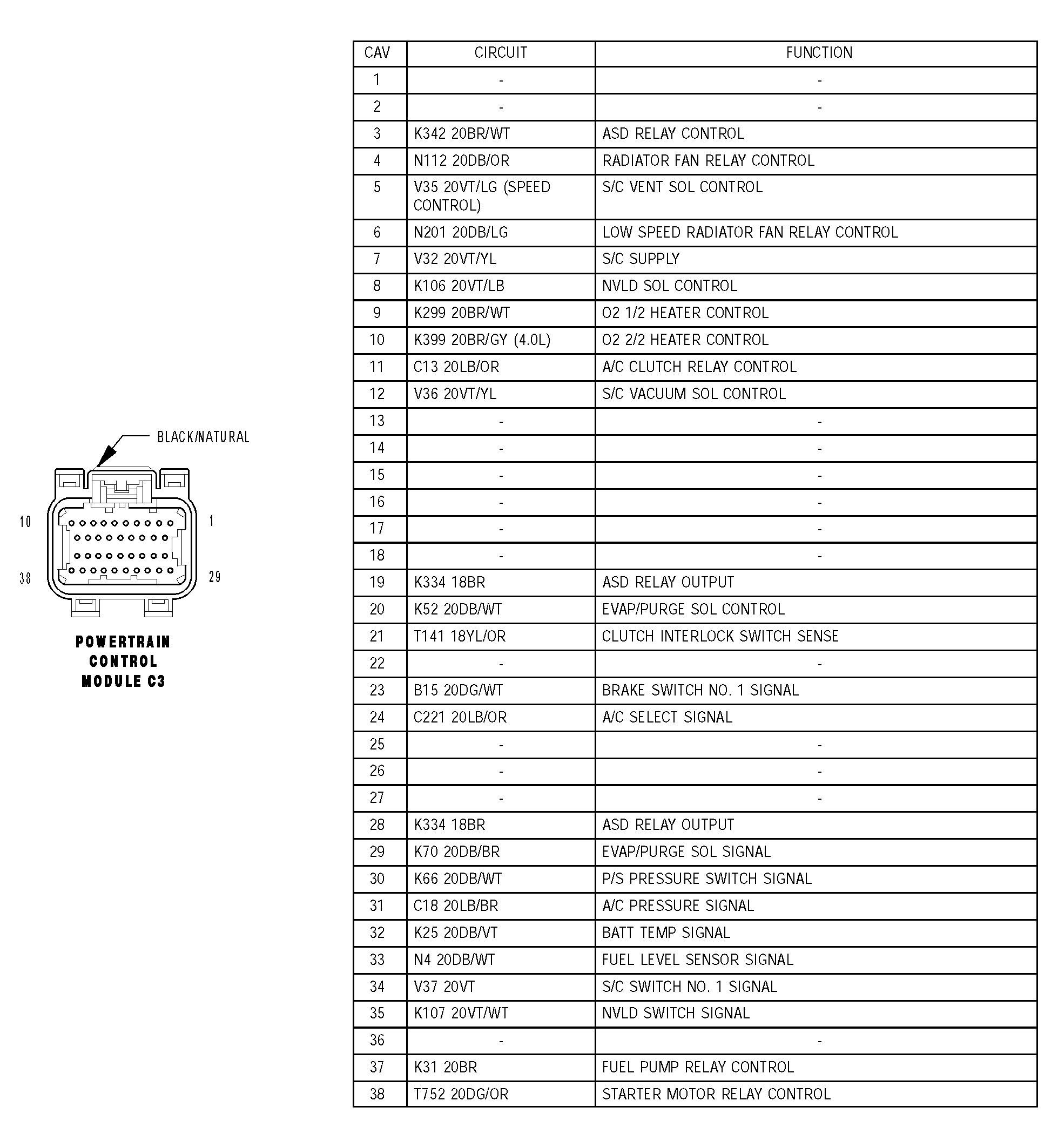

Fig 1: Identifying Powertrain Control Module Connector Terminal C3 - Black/Natural 38 Way
G04550627Courtesy of DAIMLERCHRYSLER CORP.
