Anti-Lock Brake System: G-Switch: Removal

1. From the drivers side lift carpet back in front of the console/shifter.
2. Disconnect harness for switch.
3. Remove mounting bolts and remove switch. See Fig 1.

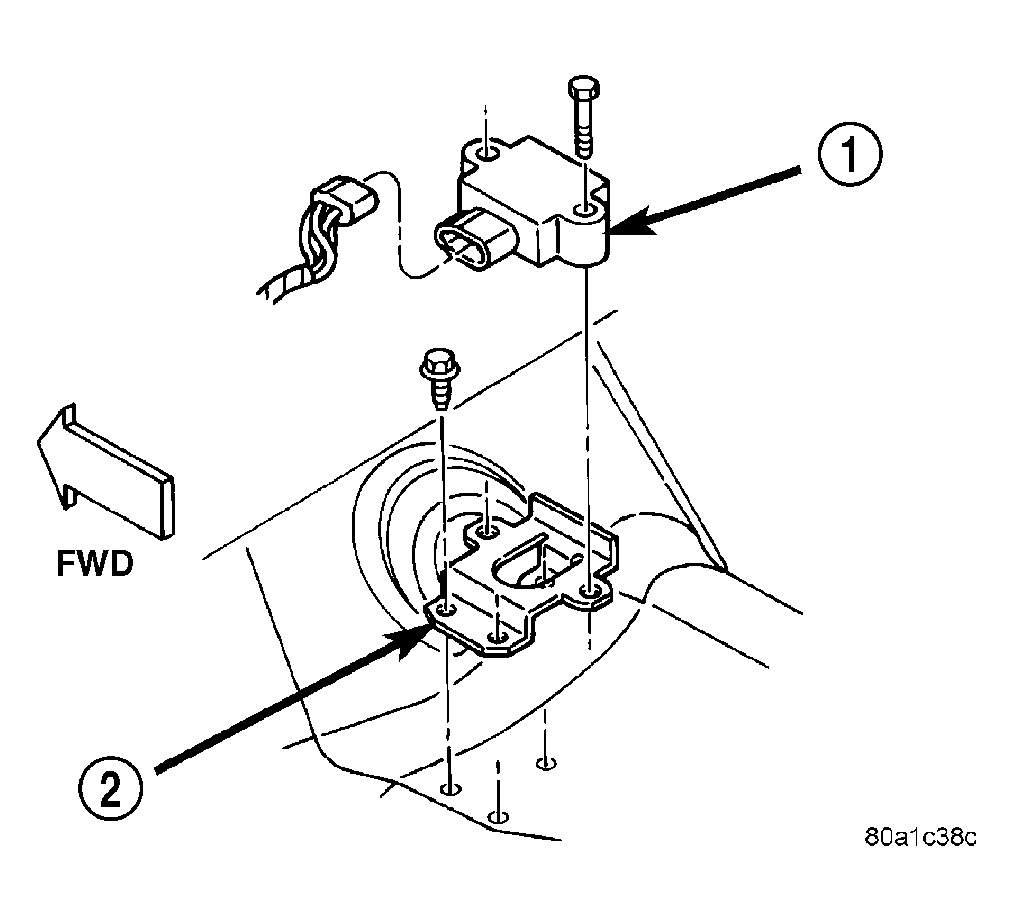

Fig 1: Removing G-Switch

Courtesy of DAIMLERCHRYSLER CORP.

1 - ACCELERATION SWITCH

2 - MOUNTING BRACKET
