Rear Wheel Speed Sensor: Removal

1. Disconnect sensors at rear harness connectors.
2. Remove wheel and tire assembly.
3. Remove brake drum.
4. Remove clips securing sensor wires to brake lines, rear axle and, brake hose.
5. Unseat sensor wire support plate grommet.
6. Remove bolt attaching sensor to bracket and remove sensor. See Fig 1.

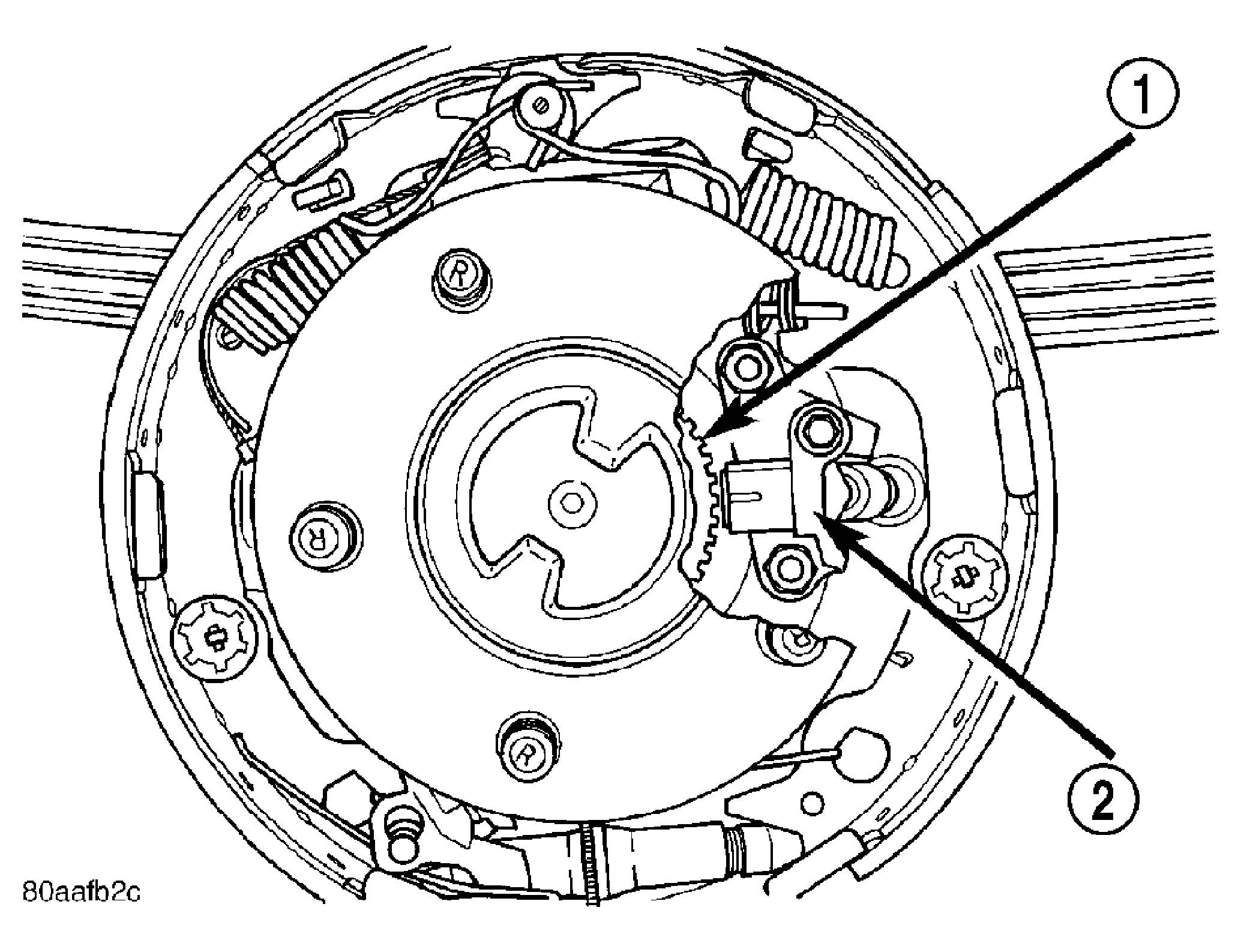

Fig 1: Wheel Speed Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - TONE WHEEL

2 - WHEEL SPEED SENSOR
