Connector PINOUTS
›
Power Distribution Center
Power Distribution Center

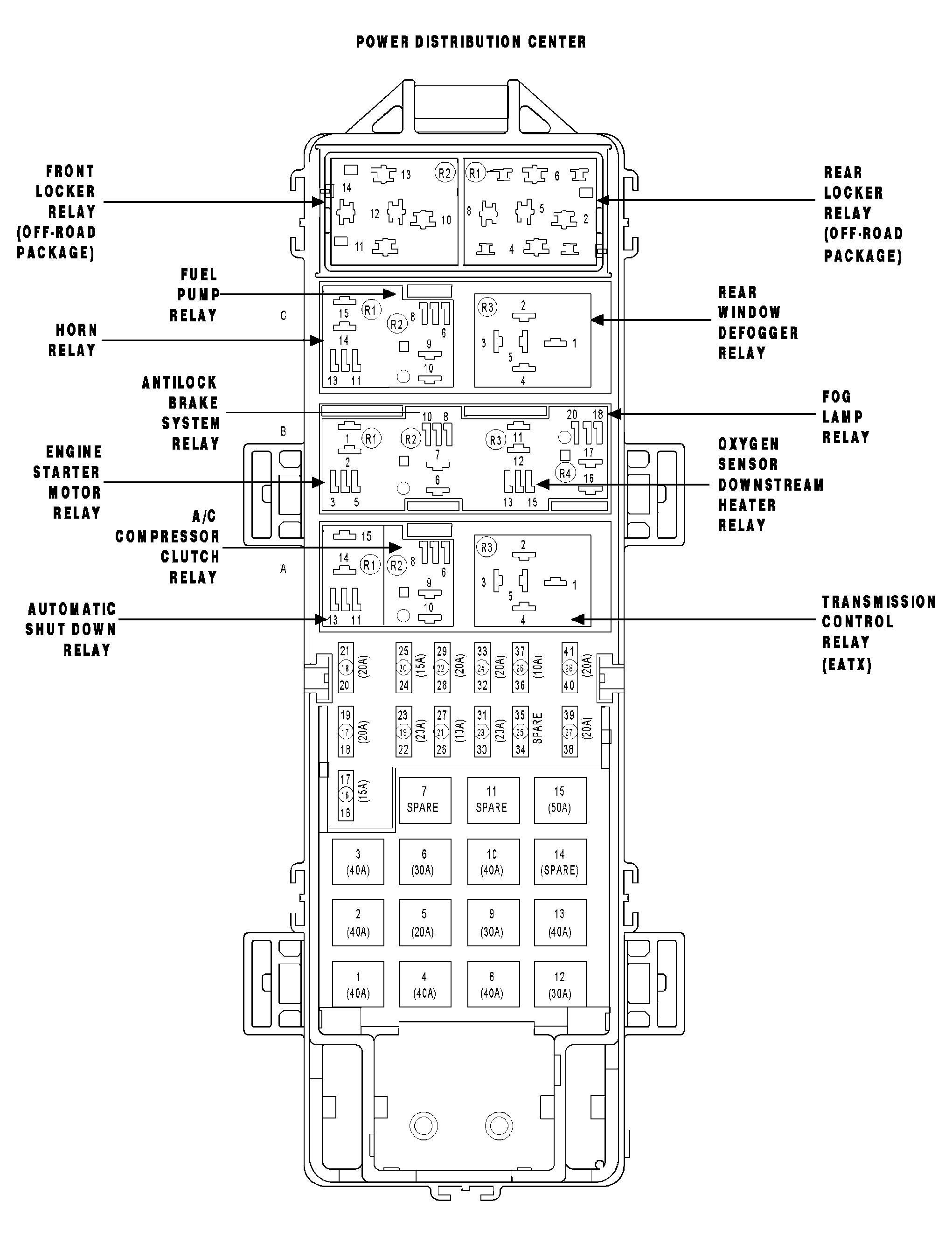

Fig 1: Power Distribution Center
Courtesy of DAIMLERCHRYSLER CORP.

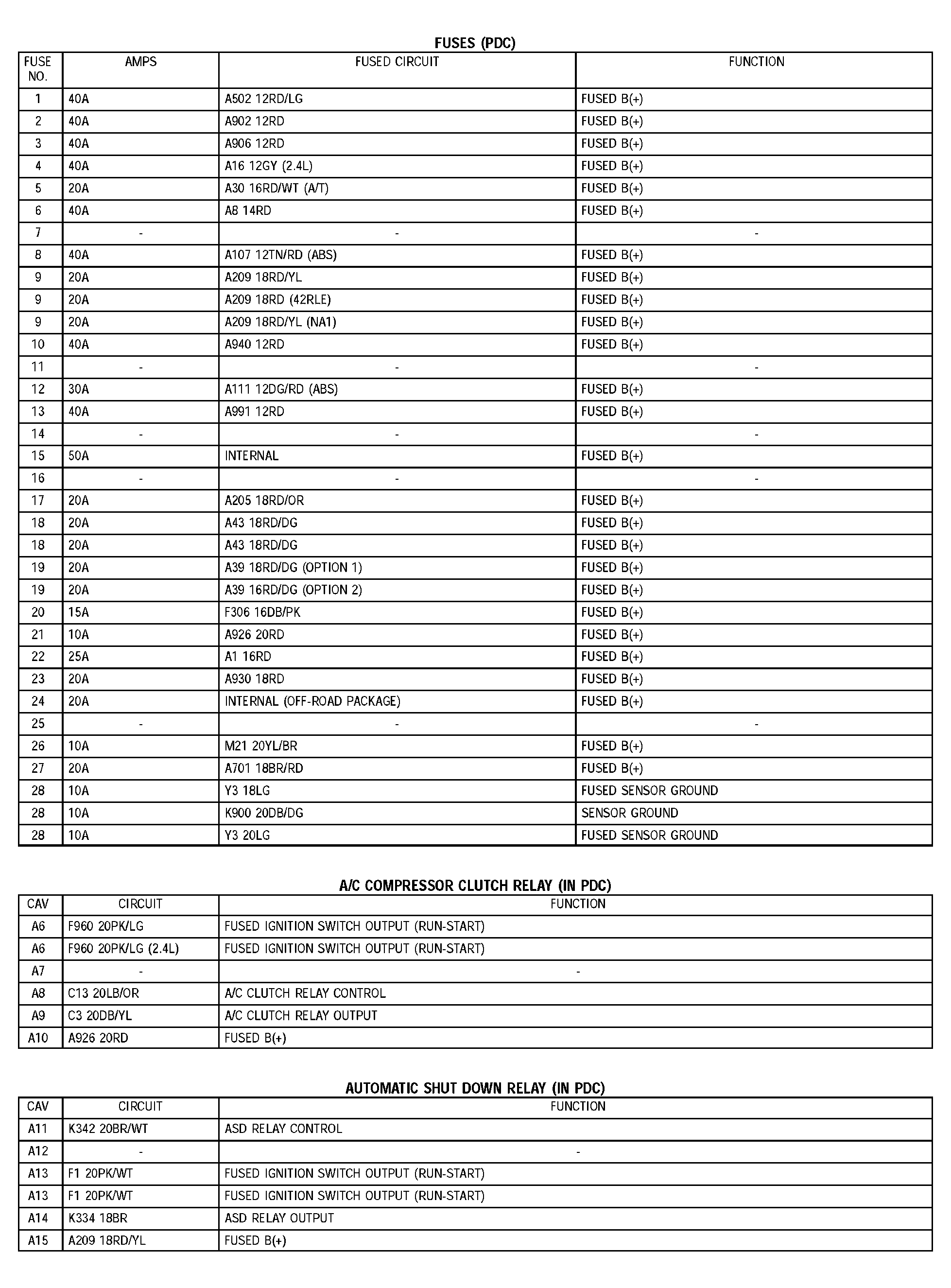

Fig 2: Power Distribution Center Fuses & Relays Chart (1 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.

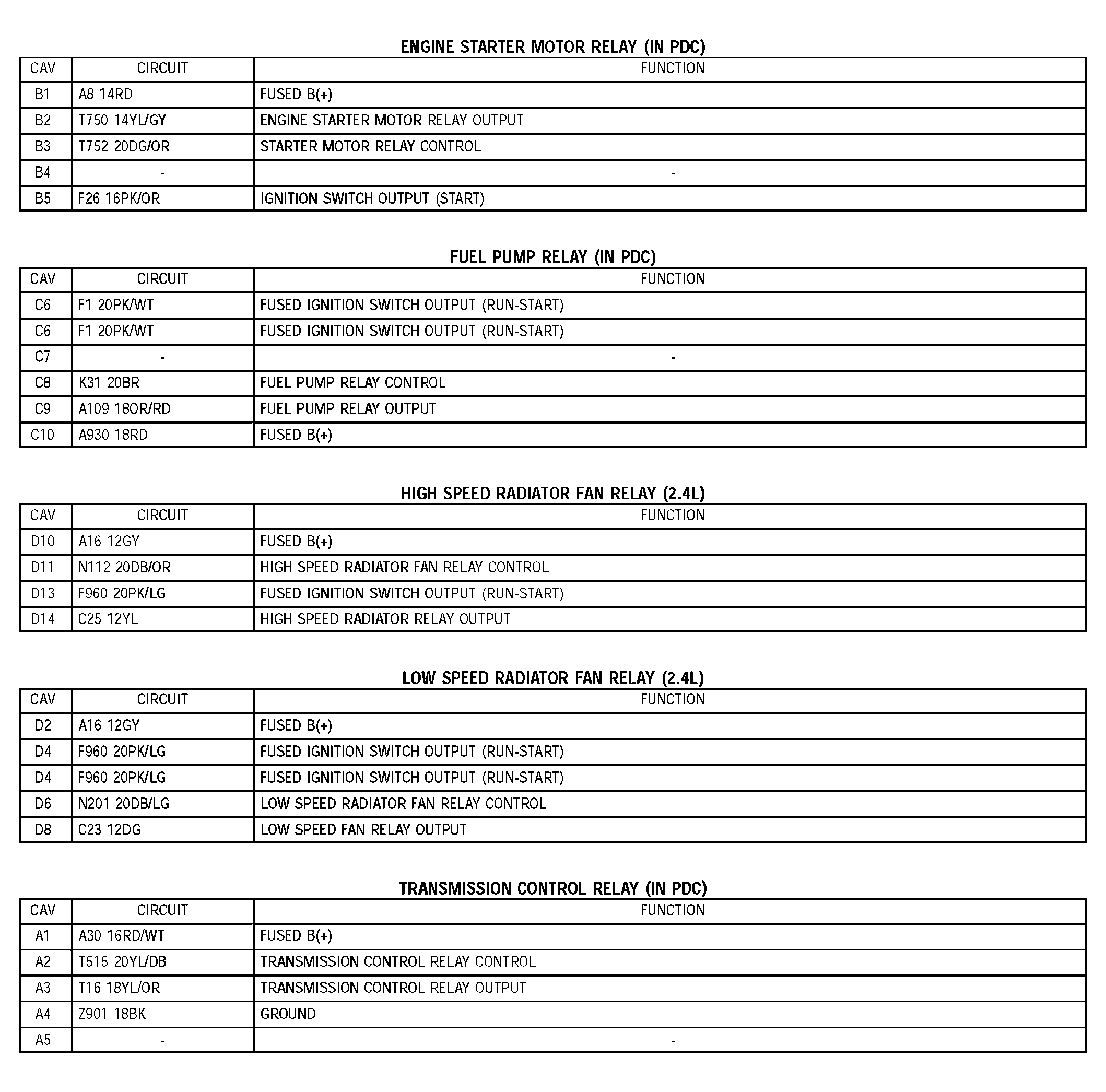

Fig 3: Power Distribution Center Fuses & Relays Chart (2 Of 2)
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
