Jeep
›
2005
›
Wrangler X, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Sentry Key Immobilizer Module - Black 6 Way
Sentry Key Immobilizer Module - Black 6 Way

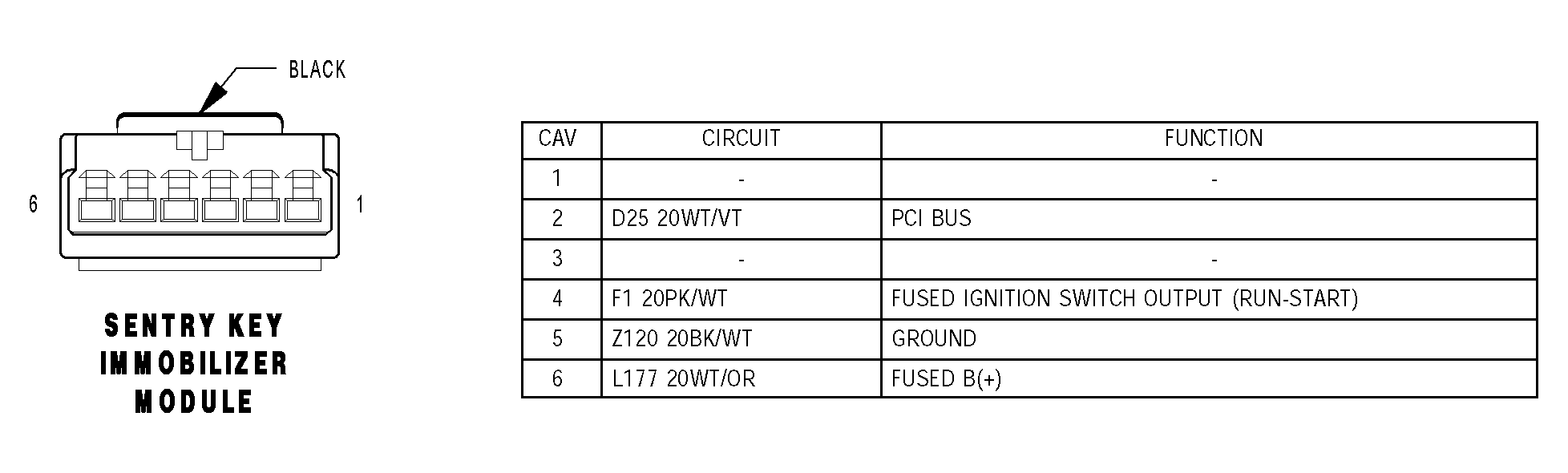

Fig 1: Identifying Sentry Key Immobilizer Module Connector Terminal - Black 6 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
