Hoisting Recommendations: Notes

Refer to the Owner's Manual for emergency vehicle lifting procedures.

When properly positioned, a floor jack can be used to lift a Jeep vehicle. See Fig 1. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.

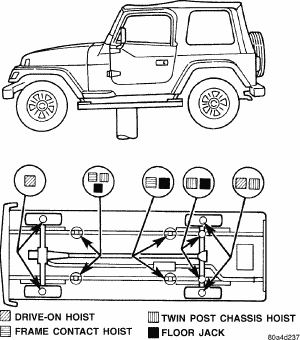

Fig 1: Vehicle Lifting Locations

Courtesy of DAIMLERCHRYSLER CORP.

• An axle tube.
• A body side sill.
• A steering linkage component.
• A drive shaft.
• The engine or transmission oil pan.
• The fuel tank.
• A front suspension arm.
• Transfer case.
