Engine Block Heater: Installation: 2.4L

Insert heater assembly with element loop positioned upward . See Fig 1.

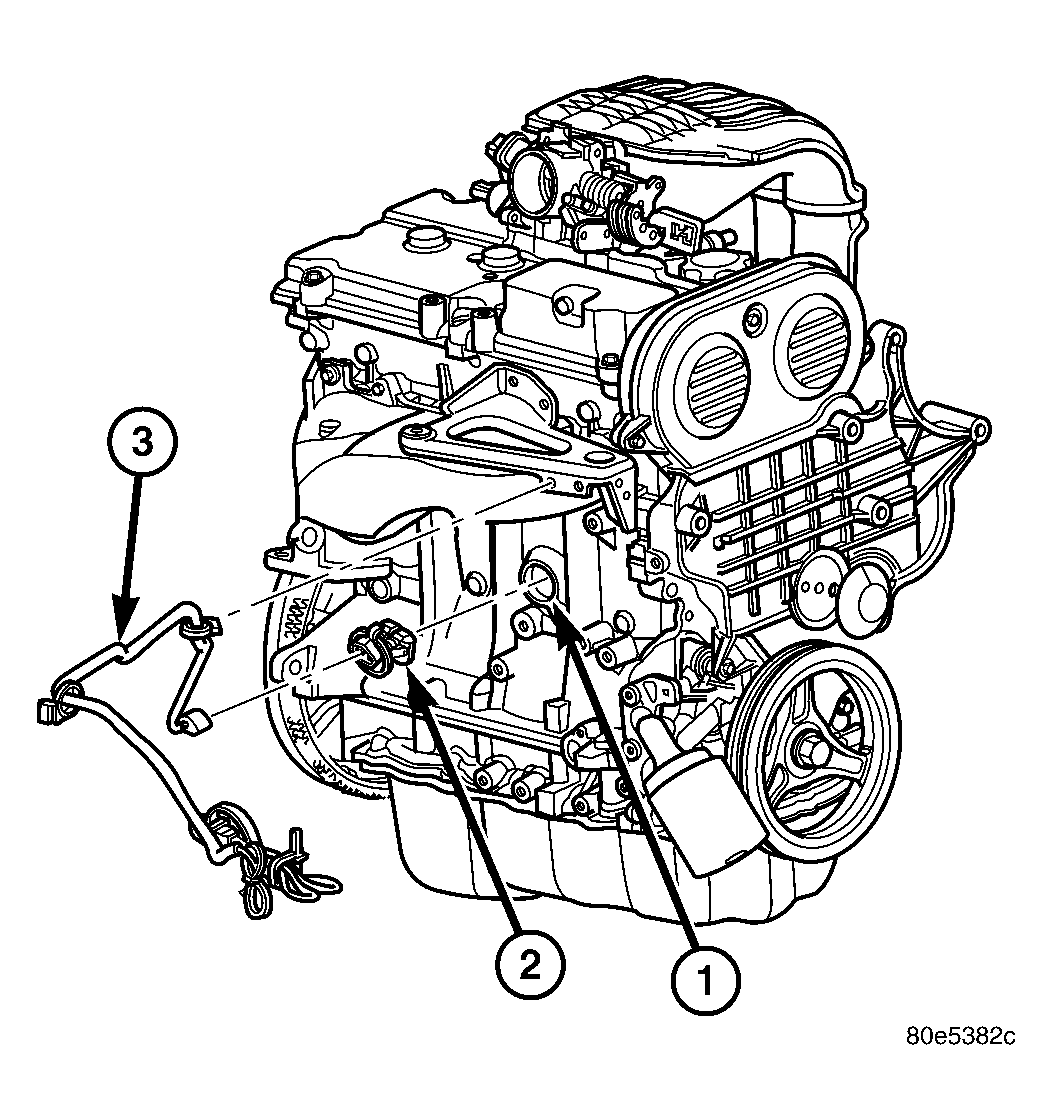

Fig 1: ENGINE BLOCK HEATER 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - CORE HOLE

2 - BLOCK HEATER

3 - POWER CORD

With heater seated, tighten center screw securely to assure a positive seal.
CAUTION: To prevent damage, the power cord must be secured in it's retaining clips, and not positioned so it could contact linkages or exhaust manifold.
Connect power cord to heater.
Lower vehicle.
Fill cooling system. (Refer to COOLING - STANDARD PROCEDURE) .
