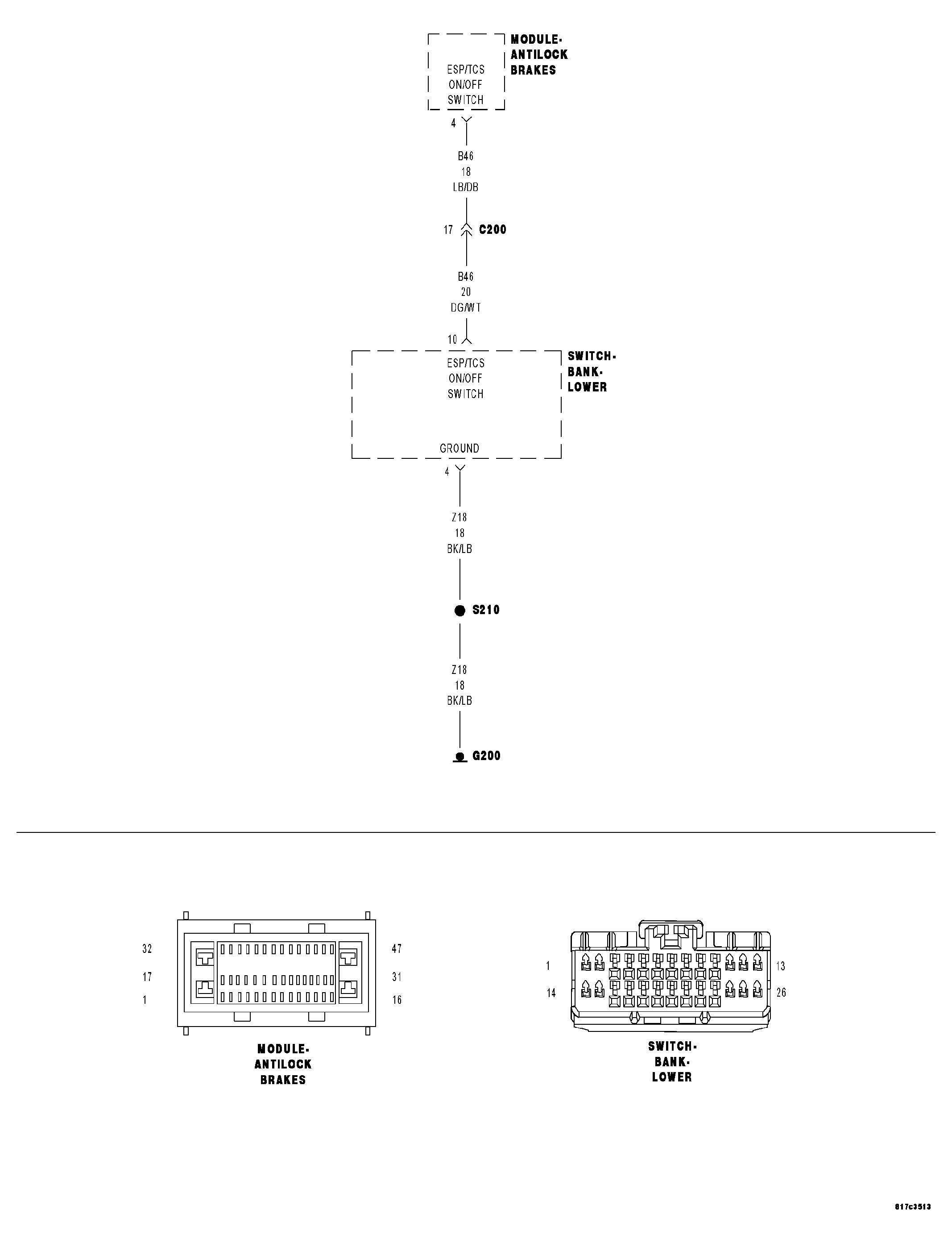

Home › Jeep › 2006 › Commander Base, 3.7 K, AWD › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System - Electrical Diagnostics › DTC Troubleshooting › Esp/TCS Switch Circuit › Circuit Schematic
