Emission System: Emissions-Evaporative: Solenoid-EVAP/Purge: Installation

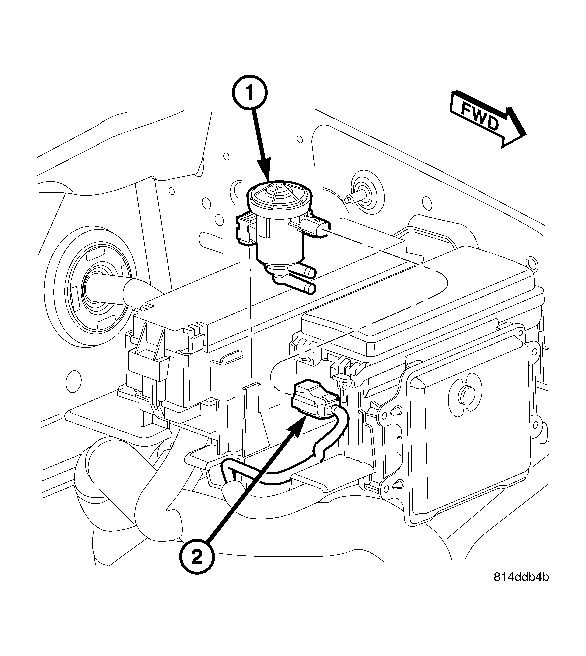

Fig 1: EVAP Solenoid Location

Courtesy of DAIMLERCHRYSLER CORP.

1. Install solenoid assembly (1) to mounting bracket.
2. Connect vacuum harness.
3. Connect electrical connector (2).
