Module-Memory Mirror: Installation
WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

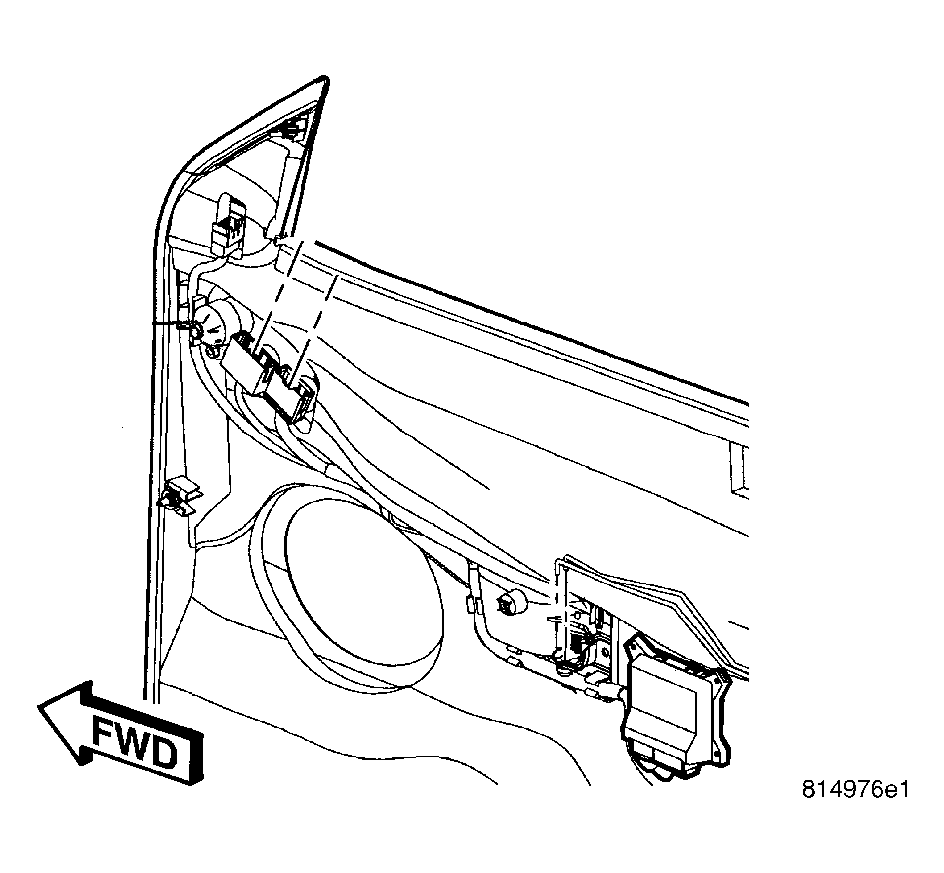

- Position module on door trim panel and install fasteners.
- Connect the electrical connector to module.
- Install the door trim panel (Refer to BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION) .
- Connect the battery negative cable.
