Circuit Schematic

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

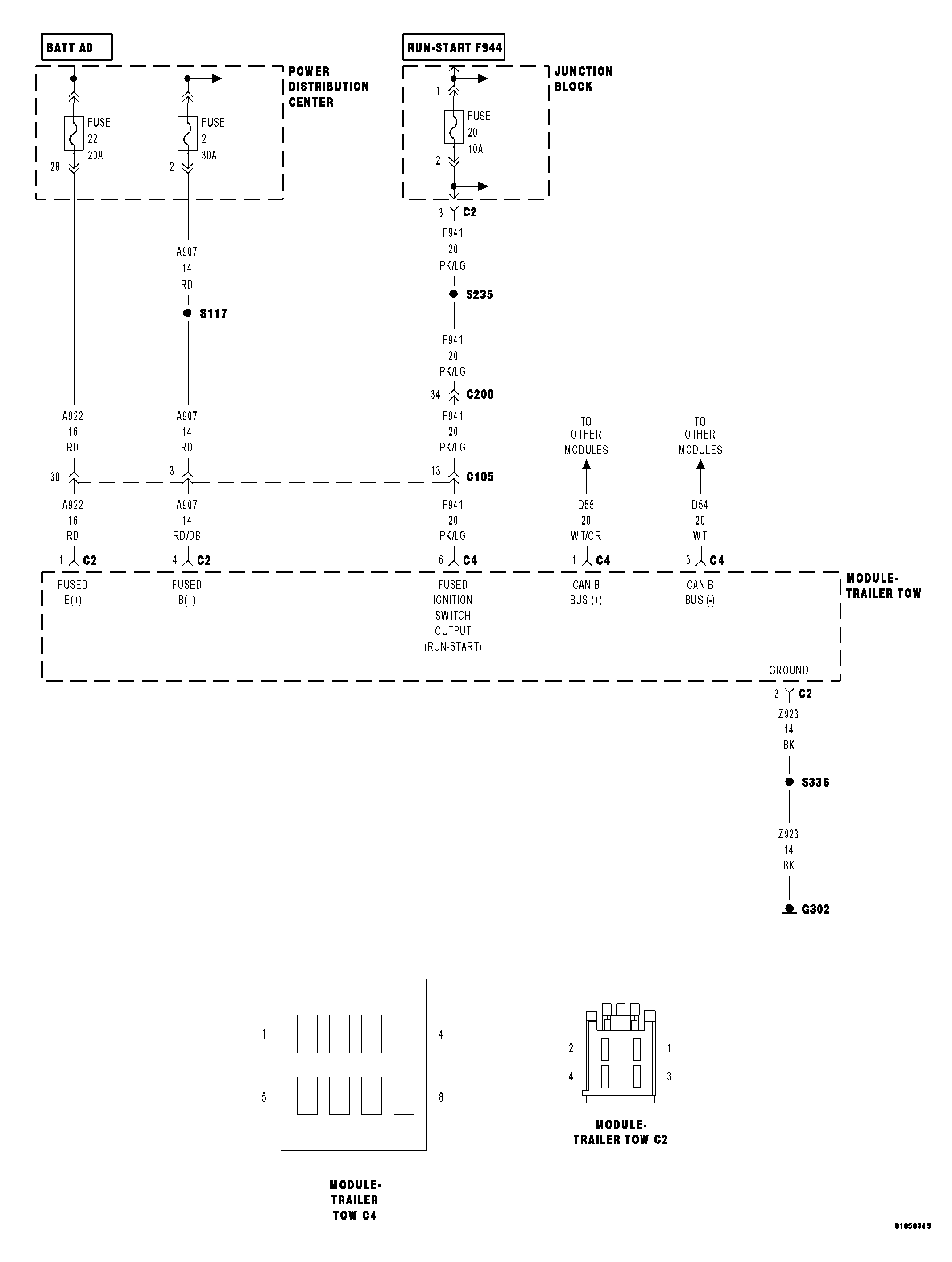

Fig 1: Trailer Tow Module Power, Ground & Communication Circuits Schematic

Courtesy of DAIMLERCHRYSLER CORP.
