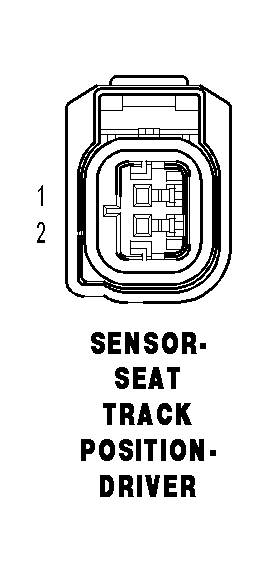

Driver Seat Track Position Sensor Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

SENSOR-SEAT TRACK POSITION-DRIVER - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R261 20LB/WT	DRIVER SEAT POSITION SENSOR DATA
2	R263 20LB/VT	DRIVER SEAT POSITION SENSOR VOLTAGE
