Generator (Diesel) Connector End View

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

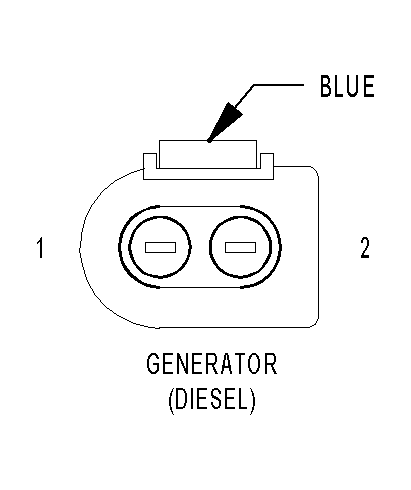

GENERATOR (DIESEL) - BLUE 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D509 20WT/BL	LIN BUS
2	A923 10RD	FUSED B(+)

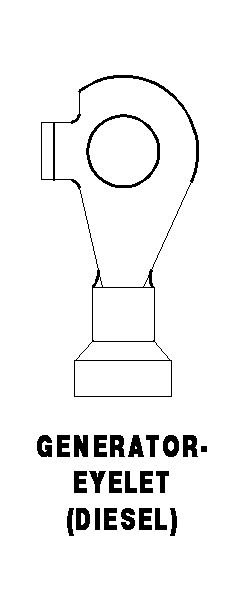

GENERATOR-EYELET (DIESEL) - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A11 4BR/RD	FUSED B(+)
