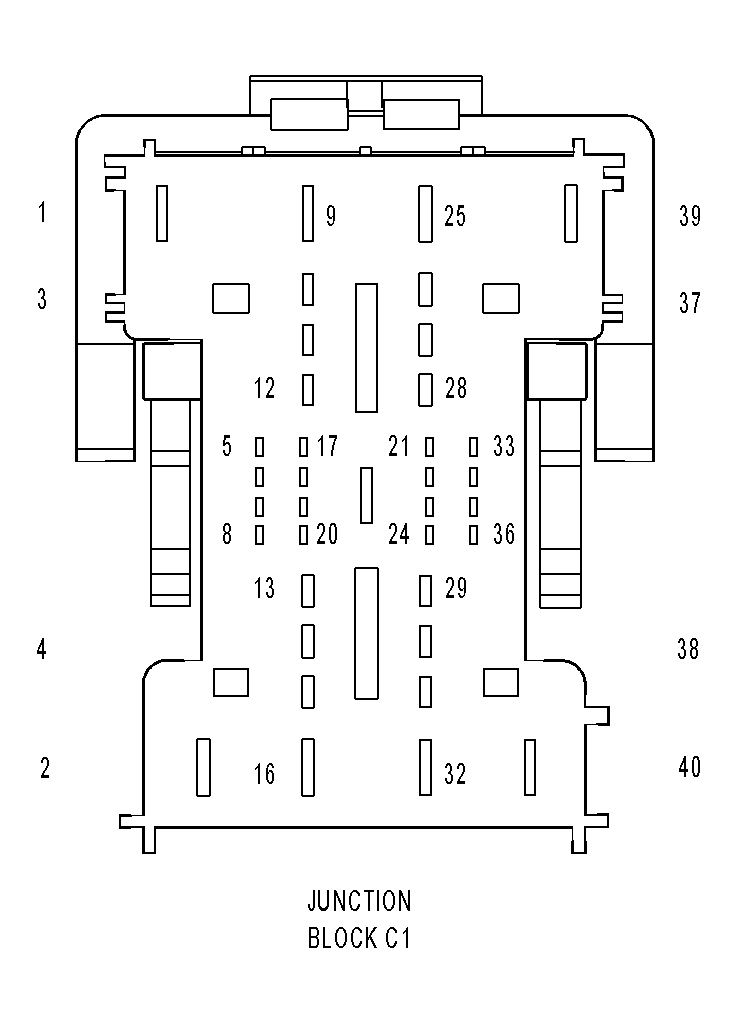

Junction Block Connector End View (C1)

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

JUNCTION BLOCK C1 - 40 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A901 12RD (DIESEL/SRT8)	FUSED B(+)
1	A901 12RD/TN (GAS EXCEPT SRT8)	FUSED B(+)
2	A925 14RD (DIESEL/SRT8)	FUSED B(+)
2	A925 14RD/LG (GAS EXCEPT SRT8)	FUSED B(+)
3	-	-
4	C105 20LB/LG	-
5	-	-
6	B45 18DG/OR (GAS ESP)	STOP LAMP INHIBIT RELAY CONTROL
7	-	-
8	-	-
9	A902 14RD (DIESEL/SRT8)	FUSED B(+)
9	A902 14RD/GY (GAS EXCEPT SRT8)	FUSED B(+)
10	A5 16RD/VT	FUSED B(+)
11	-	-
12	-	-
13	F946 20PK/DG (A/T)	TRANSMISSION CONTROL MODULE RELAY OUTPUT
14	Z387 16BK	GROUND
15	A611 14RD	FUSED B(+)
16	A930 14RD (DIESEL/SRT8)	POWER OUTLET RELAY OUTPUT
16	A930 14RD/YL (GAS EXCEPT SRT8)	POWER OUTLET RELAY OUTPUT
17	-	-
18	L950 20WT/LG (GAS EXCEPT SRT8)	STOP LAMP INHIBIT RELAY FEED
19	-	-
20	-	-
21	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
22	-	-
23	F921 20PK/DB	FUSED RUN RELAY OUTPUT
24	F924 20PK/YL	FUSED RUN RELAY OUTPUT
25	A905 12RD (DIESEL/SRT8)	FUSED B(+)
25	A905 12RD/WT (GAS EXCEPT SRT8)	FUSED B(+)
26	A118 16RD/OR	FUSED B(+)
27	F943 18PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
28	A114 18GY/RD	FUSED B(+)
29	F923 14PK/YL	RUN RELAY OUTPUT
30	F944 18PK/TN (EXCEPT SRT8)	IGNITION SWITCH OUTPUT (RUN-START)
30	F944 18PK/LG (SRT8)	IGNITION SWITCH OUTPUT (RUN-START)
31	A906 12RD (DIESEL/SRT8)	FUSED B(+)
31	A906 12RD/OR (GAS EXCEPT SRT8)	FUSED B(+)
32	A908 12RD (DIESEL/SRT8)	FUSED B(+)
32	A908 12RD/VT (GAS EXCEPT SRT8)	FUSED B(+)
33	W12 20BR/OR	REAR WIPER RELAY CONTROL
34	-	-
35	F921 20PK/GY (EXCEPT 3.7L)	FUSED RUN RELAY OUTPUT
36	F942 20PK/LG	FUSED IGNITION SWITCH OUTPUT (RUN-START)
37	P305 20LG/LB	ACCESSORY DELAY RELAY CONTROL
38	-	-
39	A906 12RD (DIESEL/SRT8)	FUSED B(+)
39	A906 12RD/OR (GAS EXCEPT SRT8)	FUSED B(+)
40	A907 14RD	FUSED B(+)
