Junction Block Connector End View (C3)

WARNING: This page is about a different car, the 2008 Jeep Grand Cherokee, 2007 Jeep Grand Cherokee, and 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

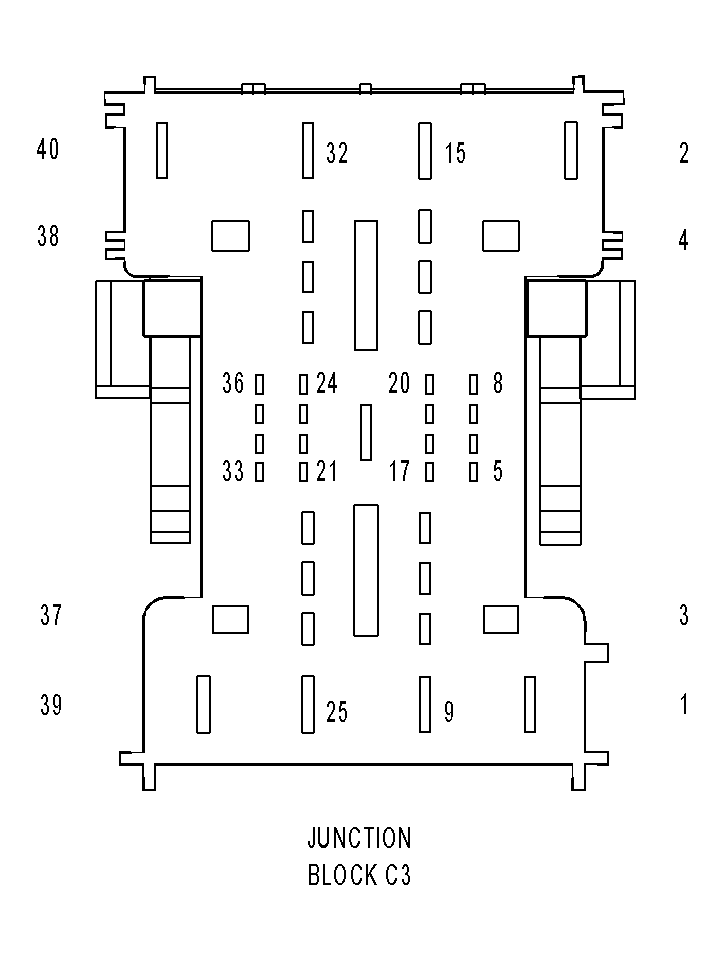

JUNCTION BLOCK C3 - 40 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A929 16RD/DB	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
2	A33 16RD/YL (POWER SEATS)	FUSED B(+)
3	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
4	-	-
5	A114 20OR/RD (EXPORT)	FUSED B(+)
6	A114 20OR/RD (SATELLITE)	FUSED B(+)
7	A114 20OR/RD	FUSED B(+)
8	-	-
9	A929 16RD/LG	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
10	-	-
11	-	-
12	-	-
13	-	-
14	-	-
15	-	-
16	A33 16BK/RD	FUSED B(+)
17	-	-
18	A114 18GY/RD	FUSED B(+)
19	-	-
20	F921 20PK/YL	FUSED RUN RELAY OUTPUT
21	C17 20LB/WT	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
22	-	-
23	-	-
24	-	-
25	Q81 18OR/GY	FLIP-UP GLASS RELAY OUTPUT
26	A931 20RD/WT	FUSED B(+)
27	A932 18RD/DG	FUSED B(+)
28	A46 18RD/GY	REAR WIPER RELAY OUTPUT
29	-	-
30	A934 18RD/OR	FUSED RUN/ACCESSORY DELAY RELAY OUTPUT
31	-	-
32	C515 12LB/OR	REAR WINDOW DEFOGGER RELAY OUTPUT
33	C17 20LB/DG	FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
34	P792 16LG/TN	DOOR UNLOCK RELAY OUTPUT
35	P701 16LG/DG	DRIVER DOOR UNLOCK RELAY OUTPUT
36	P778 16LG/LB	DOOR LOCK RELAY OUTPUT
37	A27 20RD/LB	FUSED B(+)
38	F200 20PK/LB	FUSED IGNITION SWITCH OUTPUT (RUN-START)
39	A116 14YL/RD (PREMIUM AUDIO)	FUSED B(+)
40	A205 14RD/OR	FUSED B(+)
