Section 9 (6.1L Engine (Service Information)): Cover-Structural: Removal

WARNING: This page is about a different car, the 2006 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

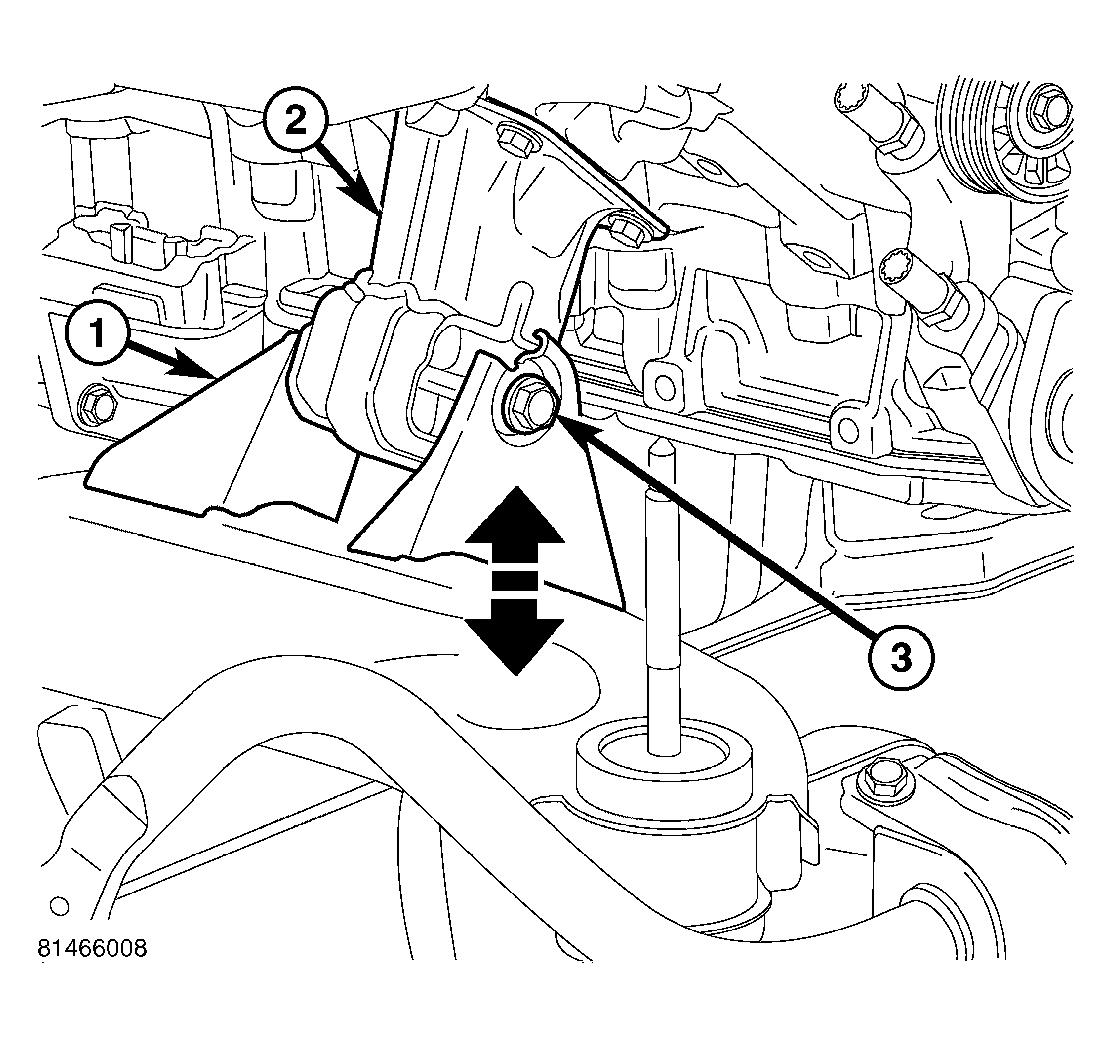

Fig 1: Removing/Installing Engine Mount Bolt
GC0047294Courtesy of DAIMLERCHRYSLER CORP.
  1. Remove the engine mount bolts (3).

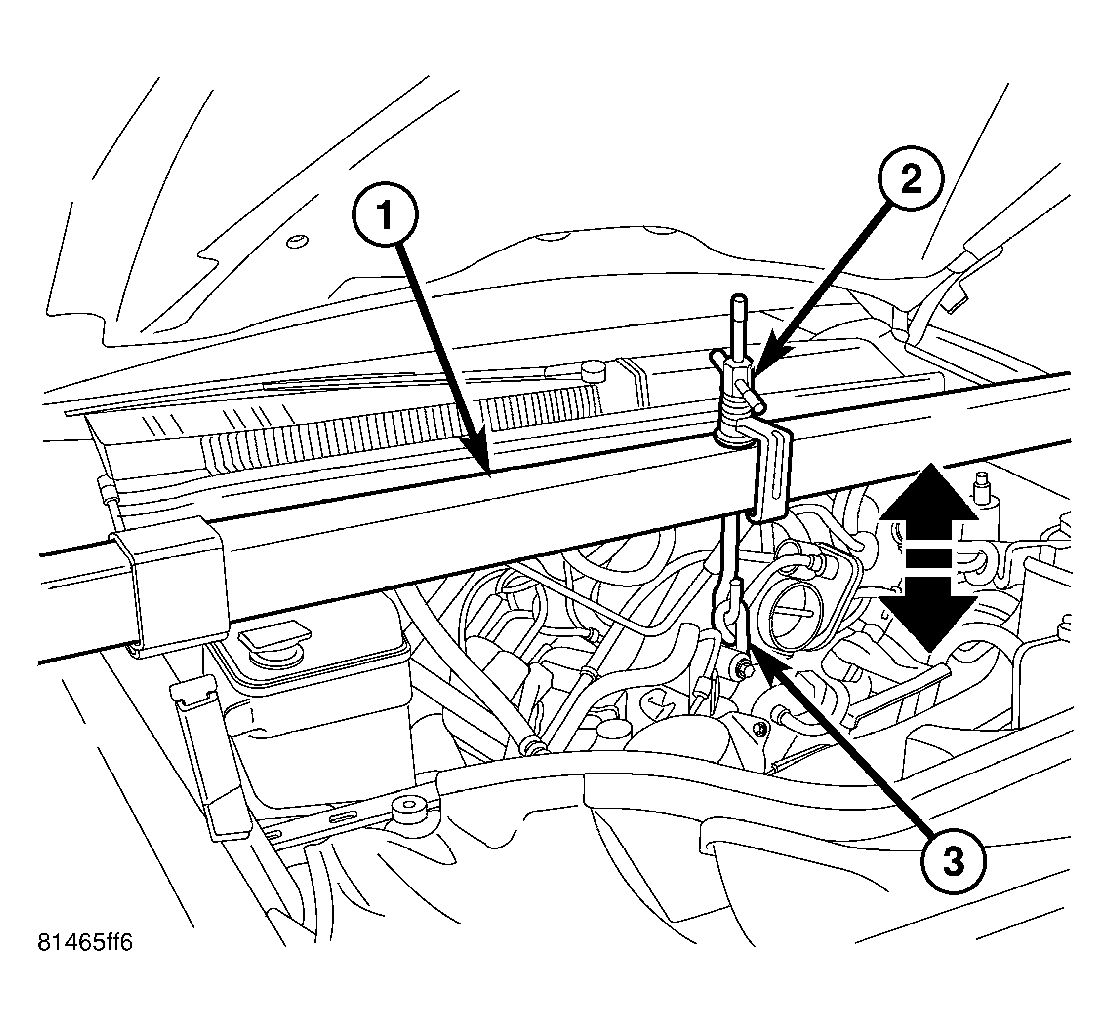

    Fig 2: Engine Support Tool
    GC0047293Courtesy of DAIMLERCHRYSLER CORP.
  2. Install engine support tool # 8534 (1).
  3. Raise engine to gain clearance for dust cover removal.
  4. Remove the bolts attaching the structural dust cover to the transmission and the oil pan.
  5. Remove the structural dust cover from the vehicle.
