Section 2 (5.7L Engine (Service Information)): Cover-Structural: Installation
WARNING: This page is about a different variant/trim than selected.
Courtesy of DAIMLERCHRYSLER CORP.

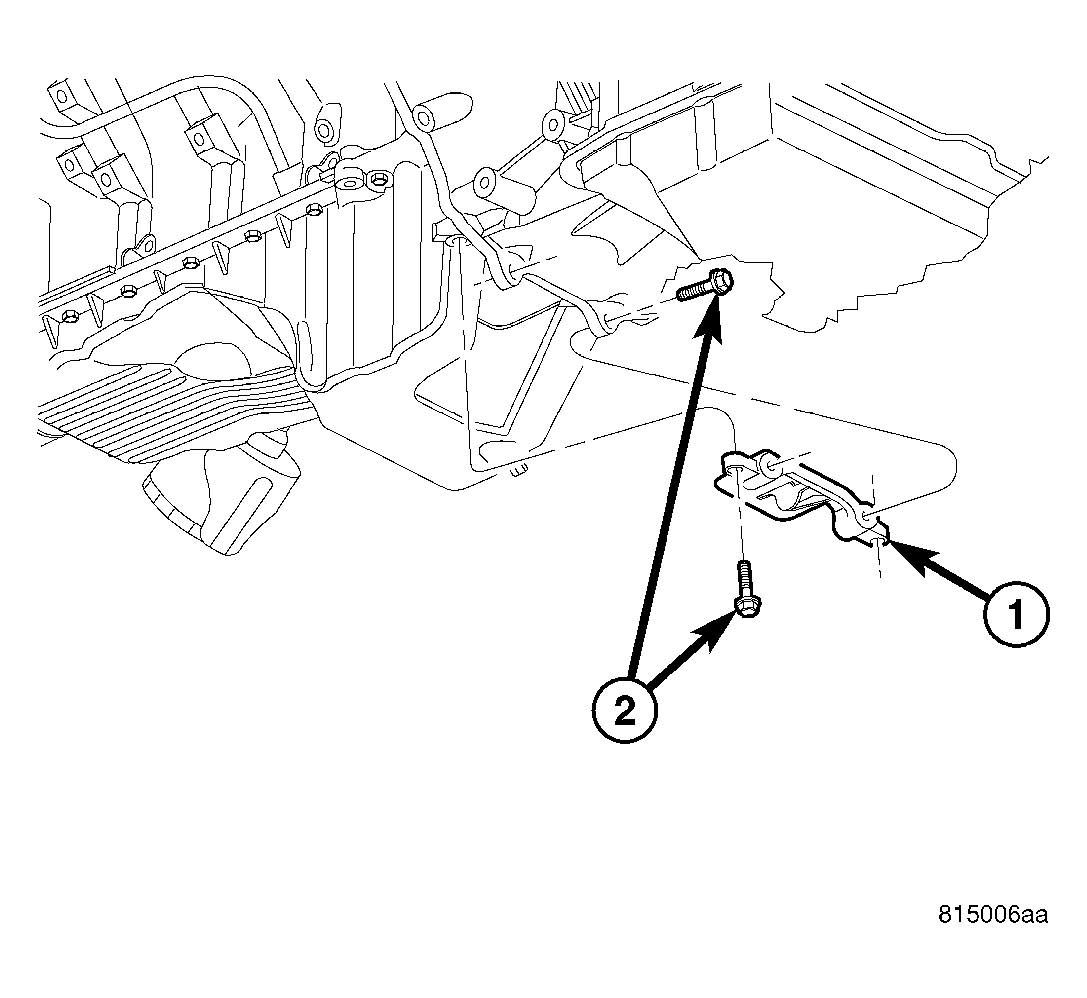

| 1 - STRUCTURAL COVER |
| 2 - BOLTS |
- Position the structural dust cover (1) onto the oil pan and transmission.
- Install the 4 bolts (2) and torque to 54 N.m (39 ft. lbs).
