Driver Seat Belt Switch Connector End View

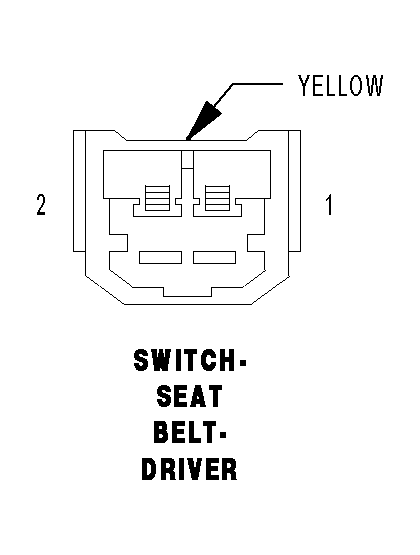

SWITCH-SEAT BELT-DRIVER - YELLOW 2 WAY

GCXH680452Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 G10 20VT/LG SEAT BELT SWITCH SENSE
2 Z911 20BK GROUND
