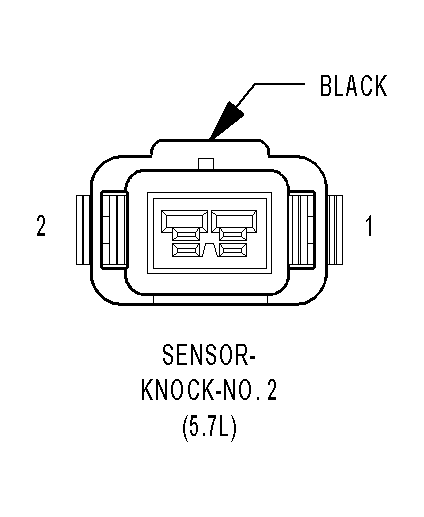

Knock Sensor 2 (5.7L) Connector End View

SENSOR-KNOCK-NO. 2 (5.7L) - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K242 20OR/WT	KNOCK SENSOR NO. 2 SIGNAL
2	K924 20WT/BR	KNOCK SENSOR NO. 2 RETURN
