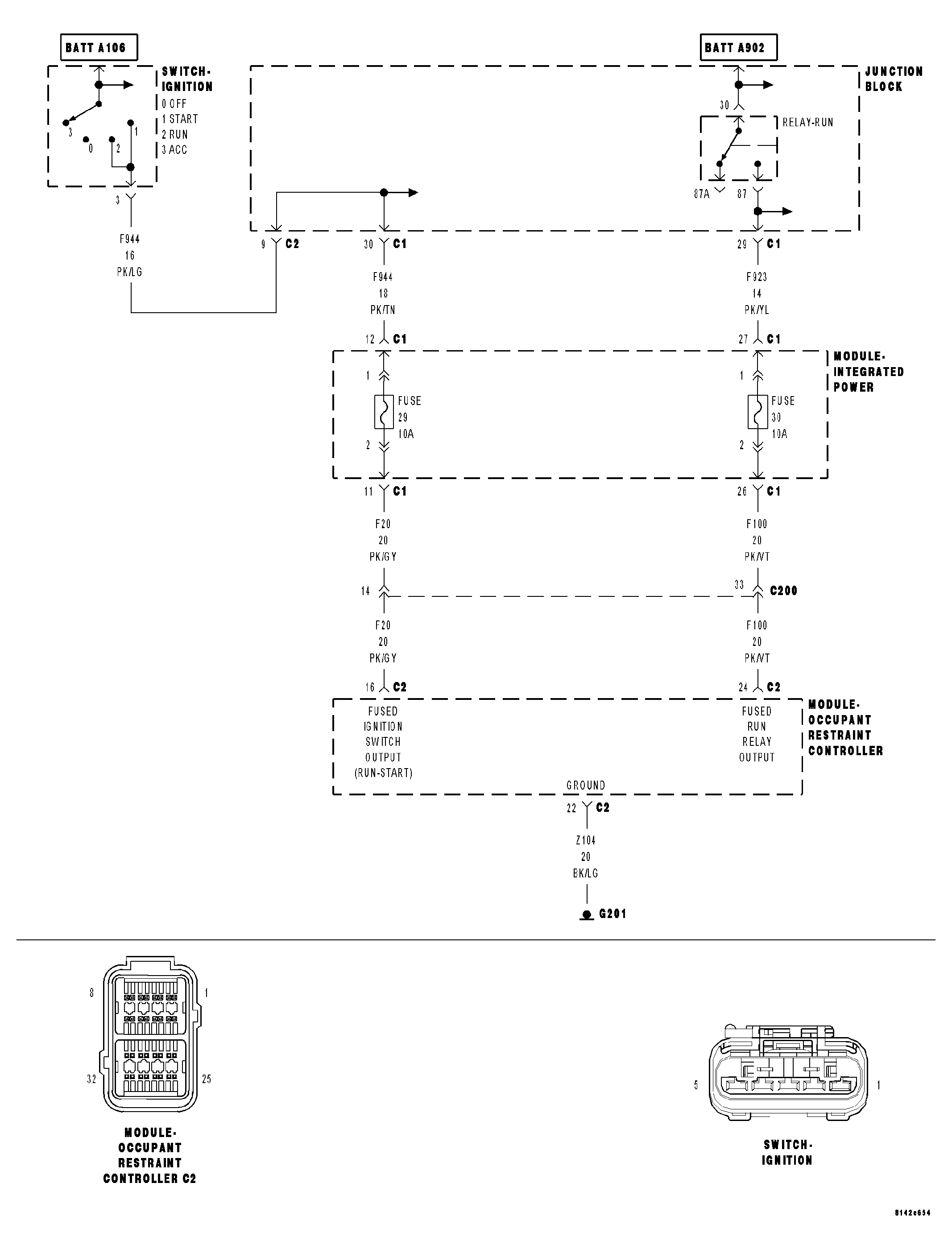

Home › Jeep › 2006 › Commander Base, 3.7 K, AWD › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1BBC To B2210 › Diagnosis And Testing › B212D-Ignition Run Only Input Circuit Open › Circuit Schematic
