3.0L Diesel

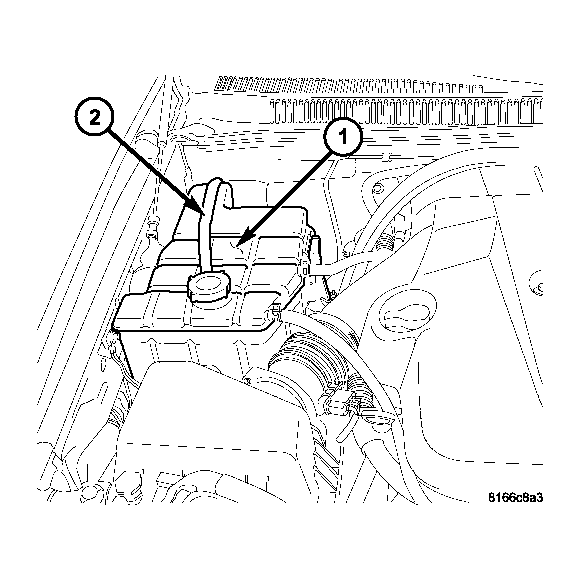

Fig 1: Coolant Reservoir/Overflow Tank - 3.0L
GC0044886Courtesy of DAIMLERCHRYSLER CORP.
1 - COOLANT RESERVOIR/OVERFLOW TANK
2 - COOLANT OVERFLOW HOSE
  1. Position coolant recovery container (1).
  2. Install mounting nuts. Tighten to 10 N.m (89 in. lbs.).
  3. Install coolant recovery tube (2).
  4. Fill cooling system, refer to appropriate procedure under STANDARD PROCEDURE .
  5. Install coolant recovery container pressure cap.
