Sensor-Engine Coolant Temperature: Installation: 3.7L

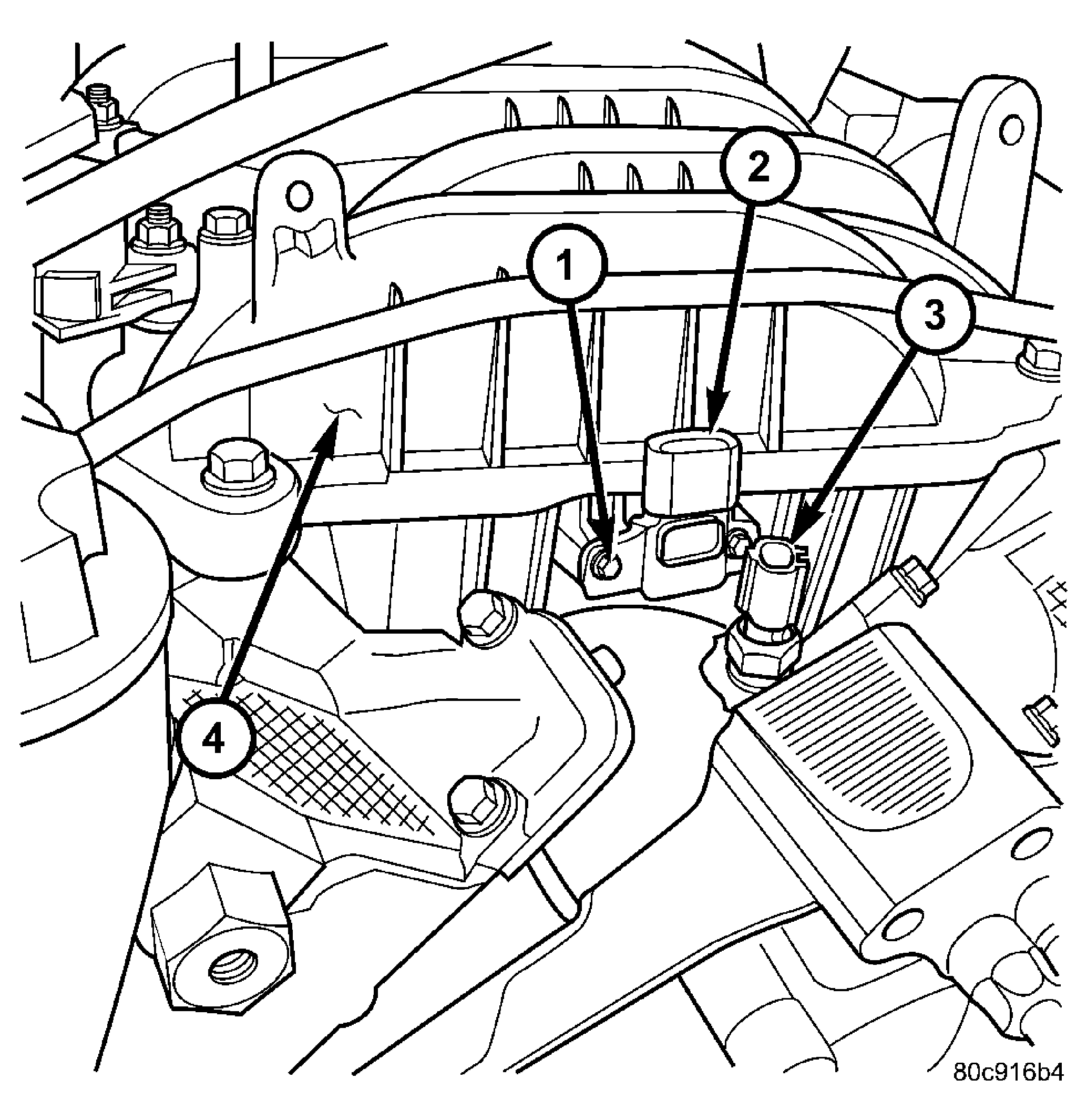

Fig 1: MAP Sensor/ECT Sensor - 3.7L

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING SCREWS

2 - MAP SENSOR

3 - ECT SENSOR

4 - FRONT OF INTAKE MANIFOLD

1. Apply thread sealant to sensor threads.
2. Install sensor to engine.
3. Tighten sensor to 11 N.m (8 ft. lbs.) torque.
4. Connect electrical connector to sensor.
5. Replace any lost engine coolant. Refer to appropriate procedure under STANDARD PROCEDURE .
