Sensor-Engine Coolant Temperature: Installation: 4.7L

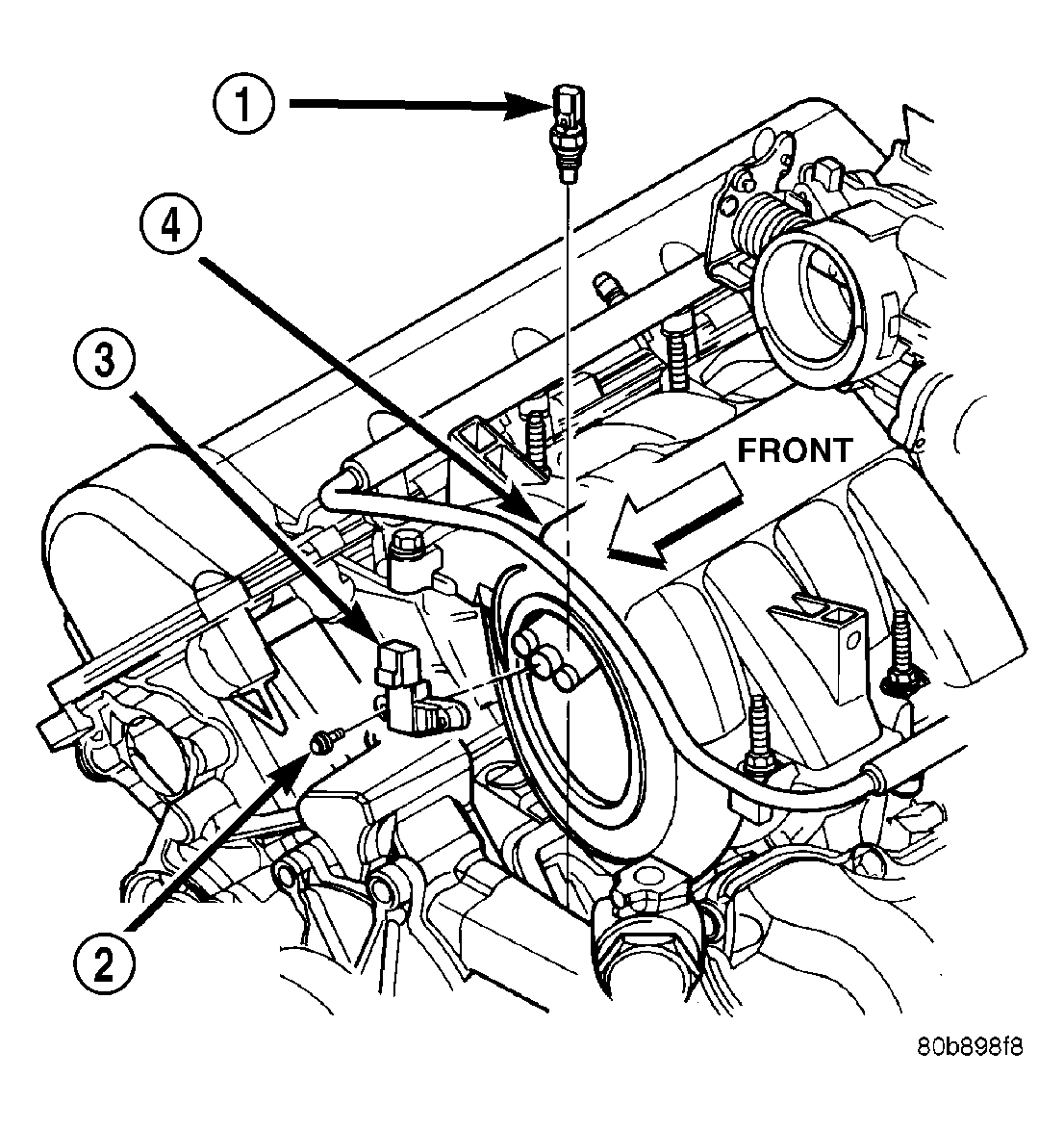

Fig 1: Engine Coolant Temperature Sensor

Courtesy of DAIMLERCHRYSLER CORP.

1 - ECT SENSOR

2 - MOUNTING BOLTS (2)

3 - MAP SENSOR

4 - INTAKE MANIFOLD

1. Install sensor.
2. Tighten to 11 N.m (8 ft. lbs.) torque.
3. Connect electrical connector to sensor.
4. Replace any lost engine coolant. Refer to appropriate procedure under STANDARD PROCEDURE .
