Circuit Schematic

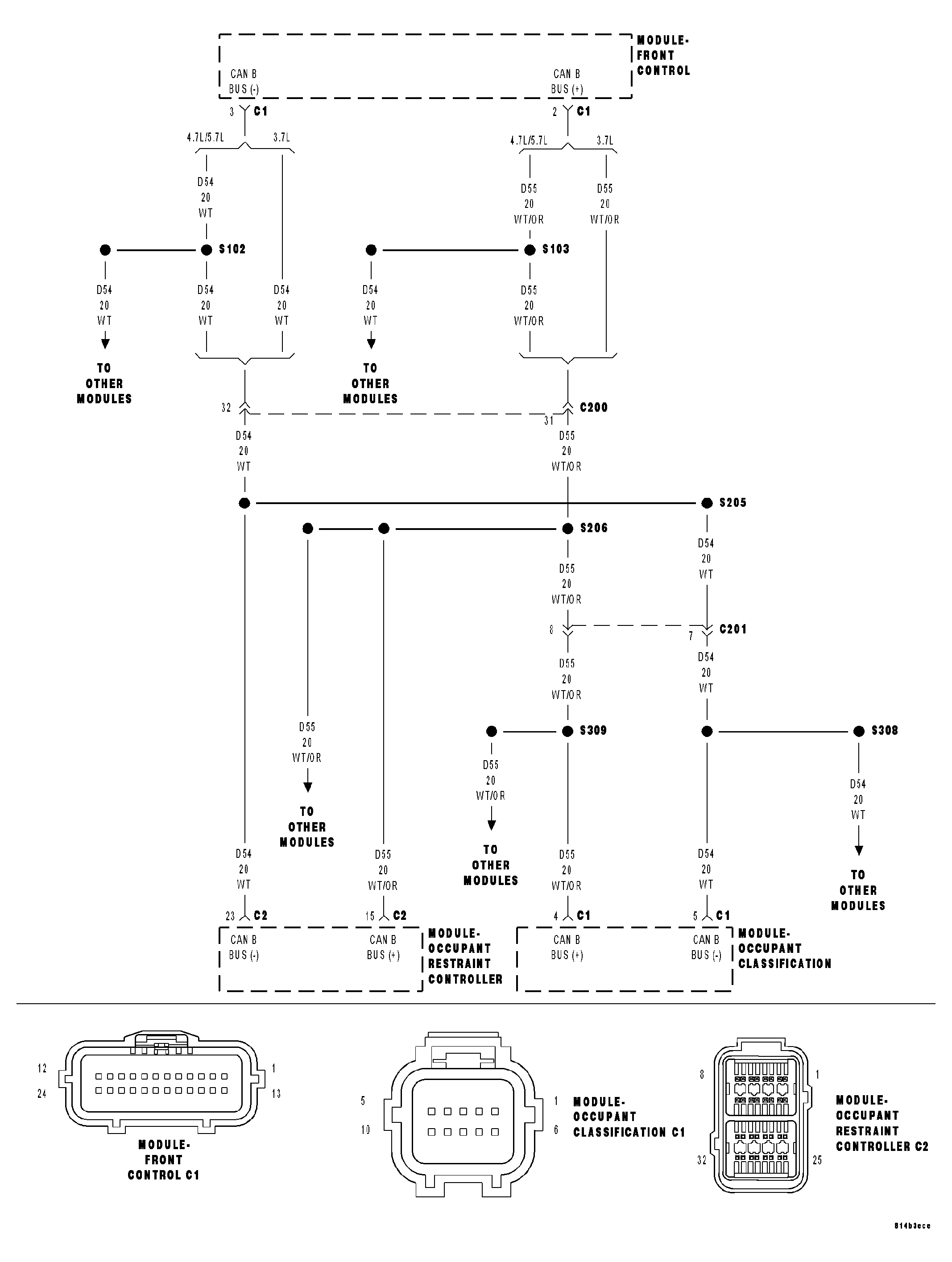

Fig 1: Occupant Classification CAN B Bus Circuit Schematic
GC0027689Courtesy of DAIMLERCHRYSLER CORP.
