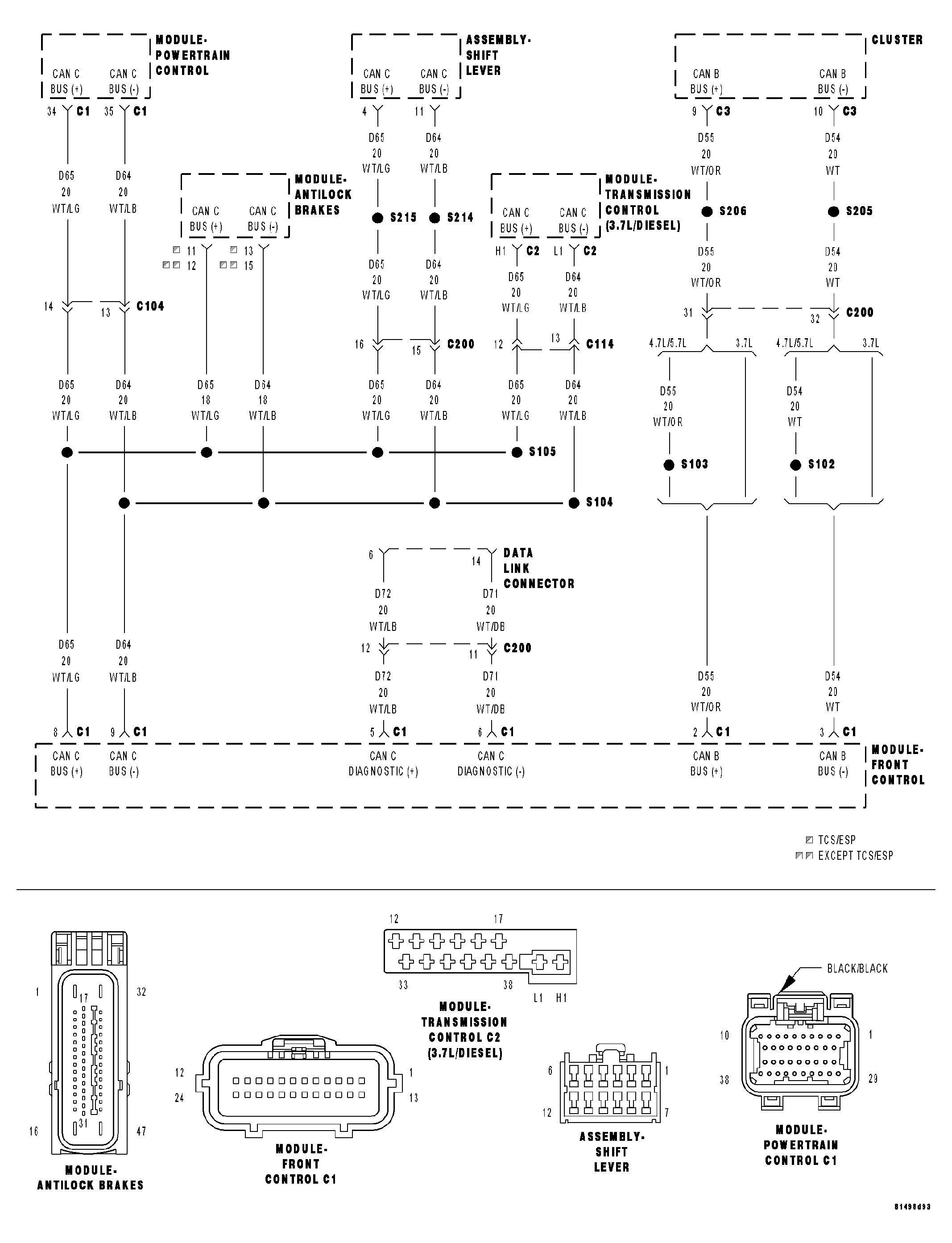

Home › Jeep › 2006 › Commander Base, 3.7 K, RWD › Repair and Diagnosis › Transmission › Transmission Control Systems › Nag1 Automatic Transmission - Electrical Diagnostics › Electrical Diagnostics › DTC Troubleshooting › U0141-Lost Communication With Front Control Module › Circuit Schematic
