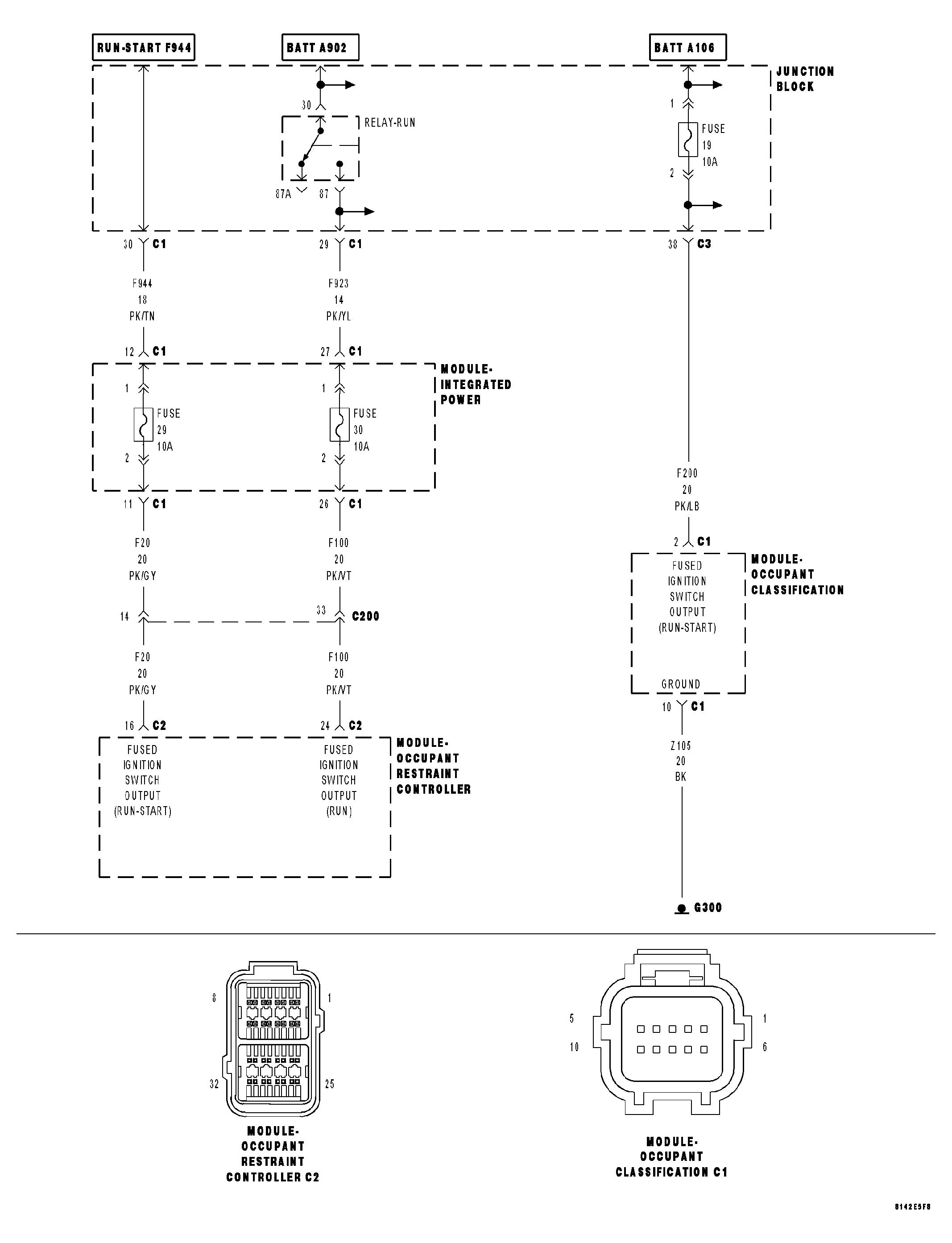

Home › Jeep › 2006 › Commander Base, 4.7 N, 4WD › Repair and Diagnosis › Restraints › Restraints Control Systems › DTCS B1BBC To B2210 › Diagnosis And Testing › B2102-Ignition Run/Start Input Circuit High › Circuit Schematic
