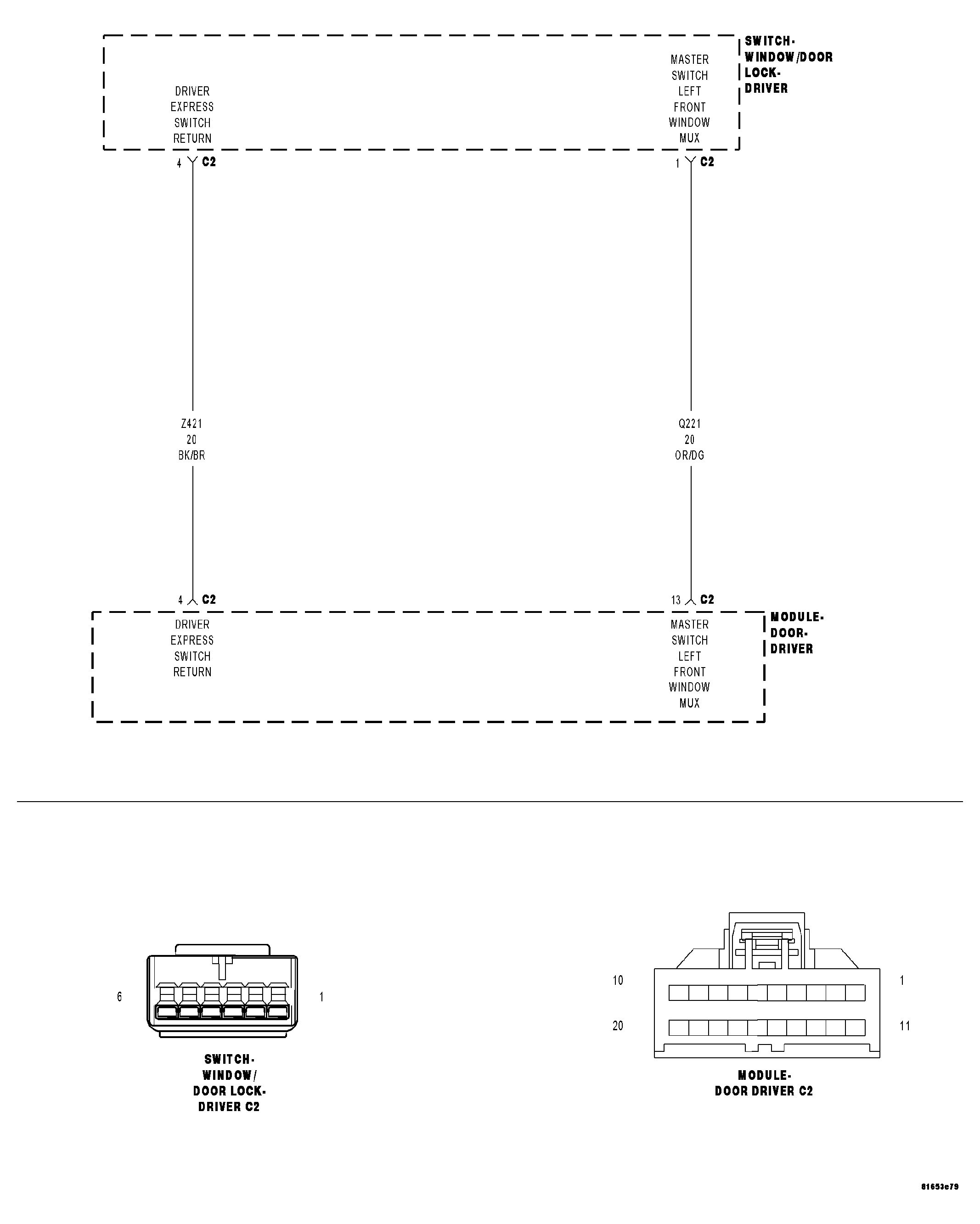

Home › Jeep › 2006 › Commander Base, 4.7 N, RWD › Repair and Diagnosis › Body & Frame › Windows › Power Windows - Electrical Diagnostics › DTC Troubleshooting › B190F-Driver Window Switch Circuit High-DDM › Circuit Schematic
