Circuit Schematic

WARNING: This page is about a different car, the 2007 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

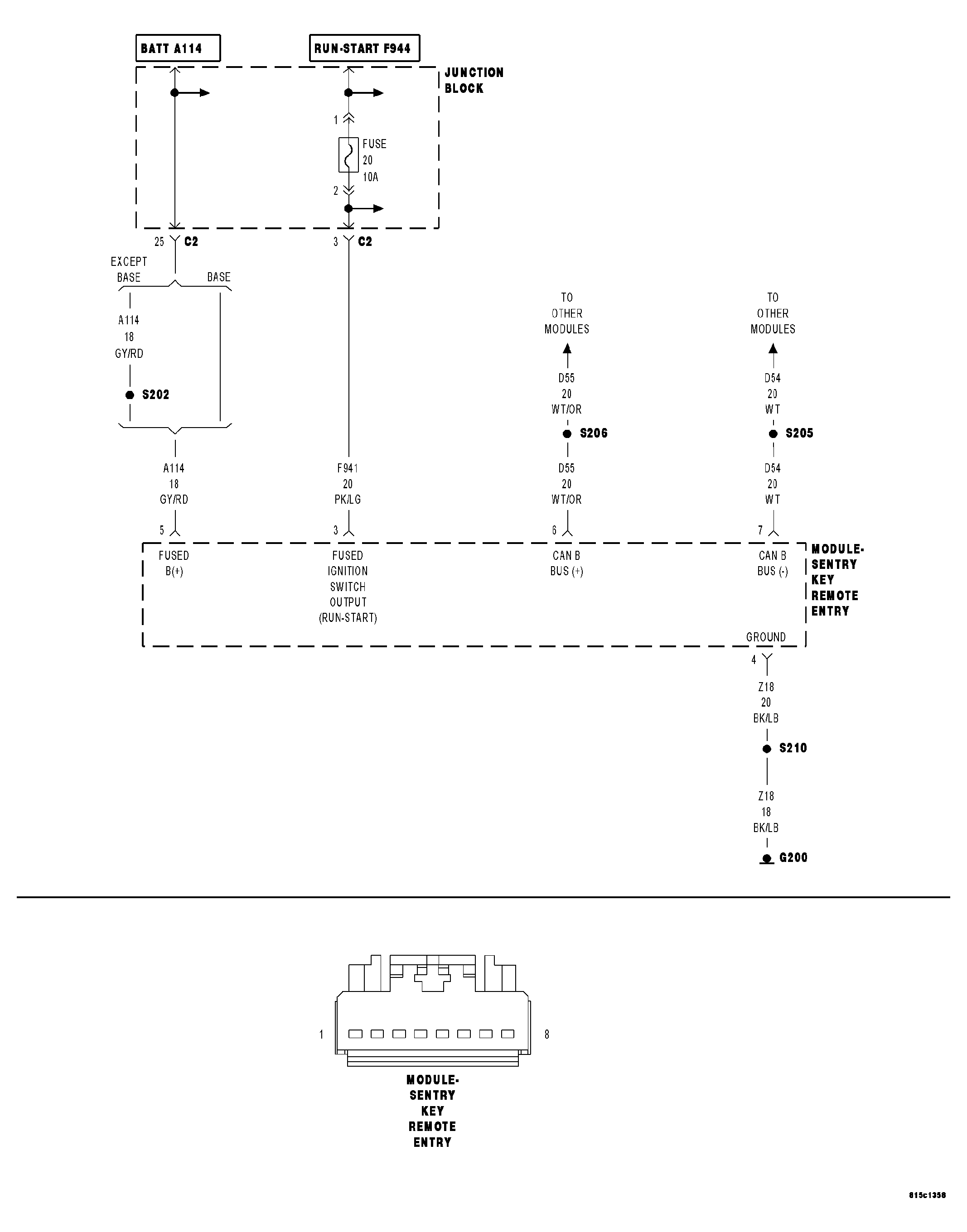

Fig 1: Sentry Key Remote Entry Module Power, Ground & Communication Circuits Schematic

Courtesy of CHRYSLER LLC
