Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Diode | In headlamp and dash harness. |
| Diode Zener No. 1 | In headlamp and dash harness. |
| Diode Zener No. 2 | In headlamp and dash harness. |

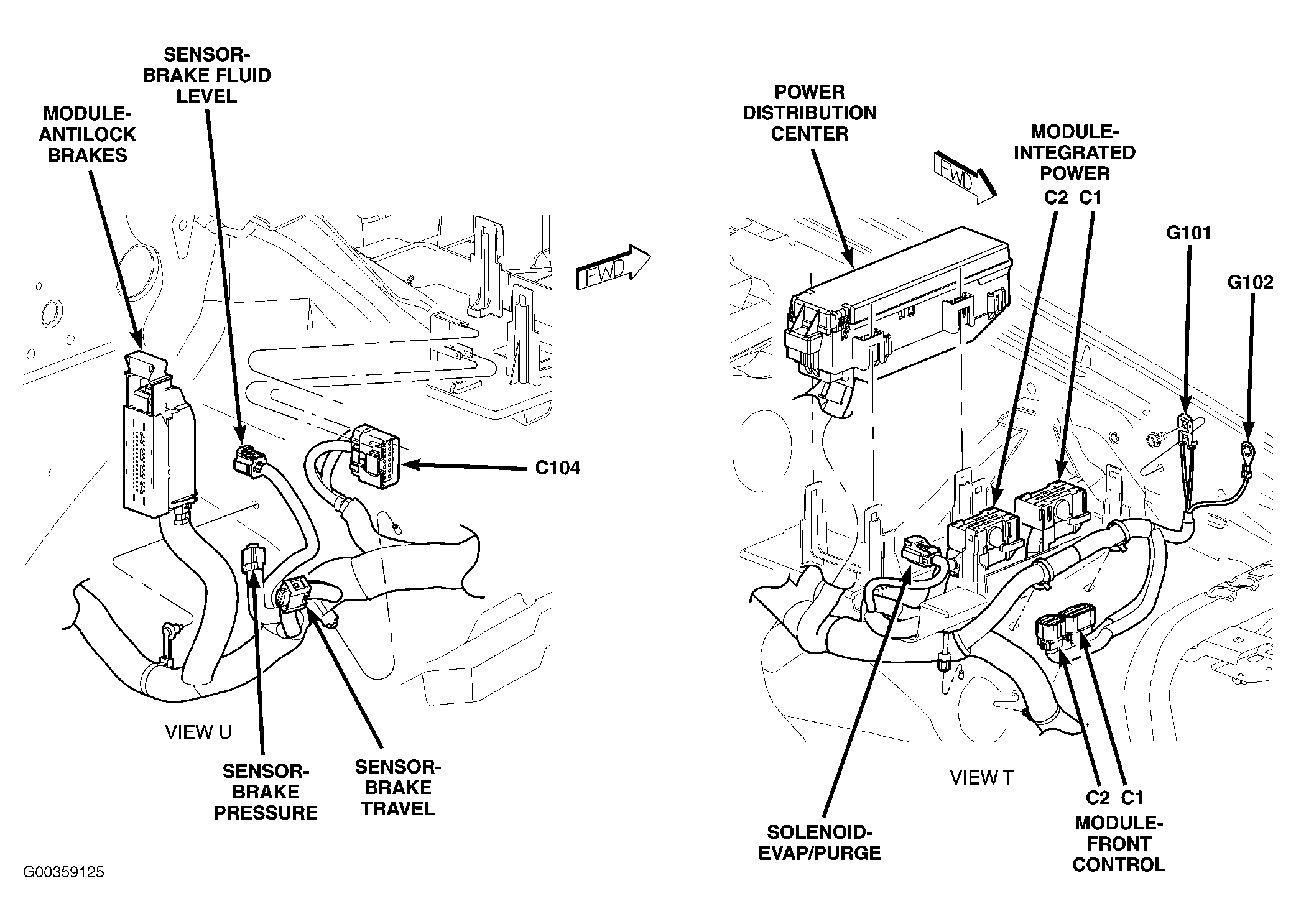

| Integrated Power Module | Left side of engine compartment. See Figure. |

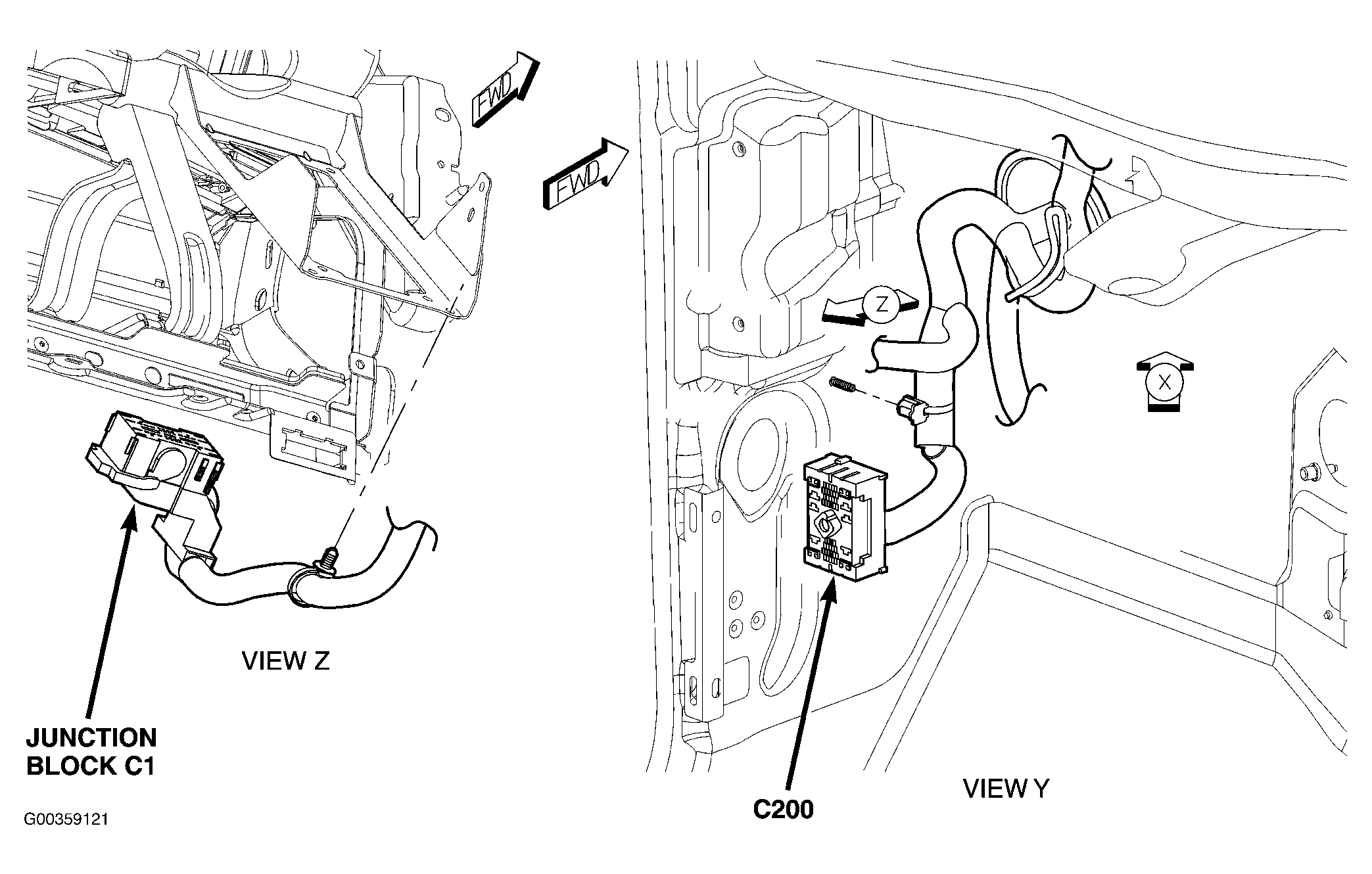

| Junction Block | Left side of dash. See Figure. |
| Power Distribution Center | Left side of engine compartment. See Figure. |
