Wrangler Rubicon, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Powertrain Diagnostic Procedures
›
Connector PINOUTS
›
Powertrain Control Module C3 - Black/Natural 38 Way
Powertrain Control Module C3 - Black/Natural 38 Way

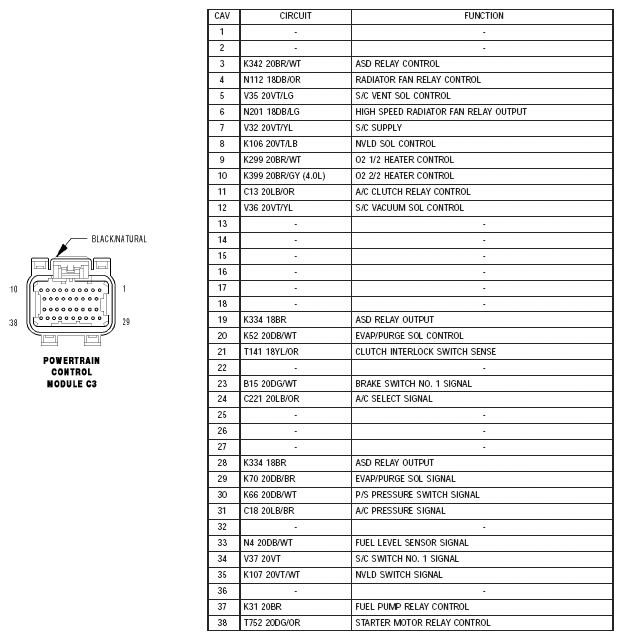

Fig 1: Connector Pinouts - Powertrain Control Module C3 (Black/Natural 38 Way)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
