A/C Compressor Clutch Relay

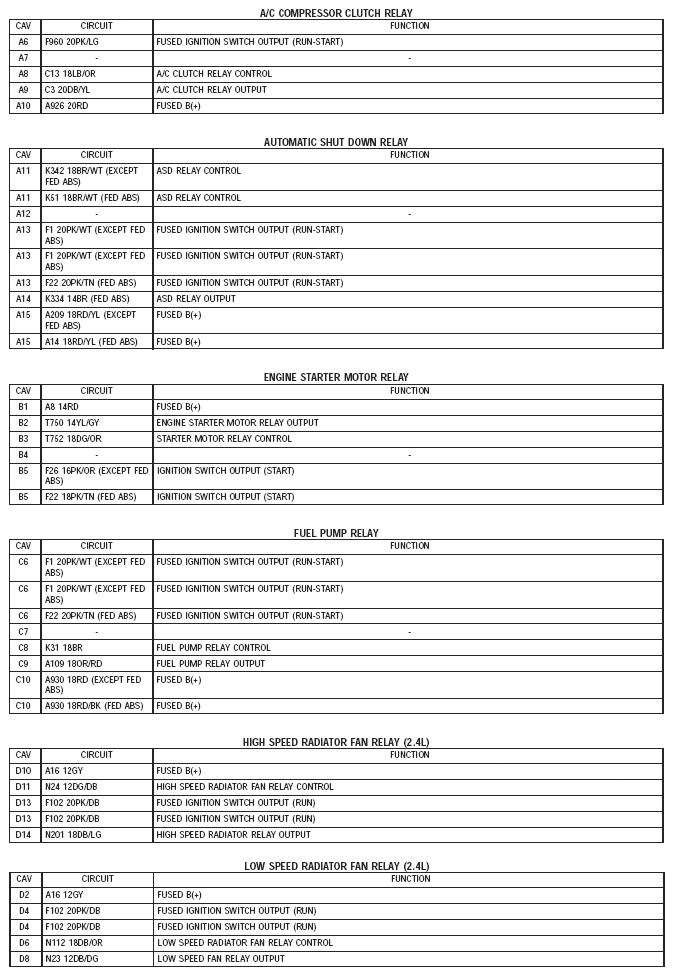

Fig 1: Power Distribution Center Relays Description Chart
G04764040Courtesy of DAIMLERCHRYSLER CORPORATION
